Description
Brand - IKO
Item Number - SBB 52-2RS IKO
Also Known As - SBB52-2RS
Category - Steel-on-Steel Spherical Bushings Inch Series
Shaft Diameter (mm) - 82.55
Shaft Diameter (inch) - 3.25
Bore Diameter (d) mm - 82.55
Bore Diameter (d) inch - 3.25
Outer Diameter (D) mm - 130.175
Outer Diameter (D) inch - 5.125
Width (B) mm - 72.24
Width (B) inch - 2.844
Boundary Dimension (C) mm - 61.9
Boundary Dimension (C) inch - 2.437
Boundary Dimension (dk) mm - 119
Boundary Dimension (dk) inch - 4.685
Minimum Radial Internal Clearance (mm) - 0.13
Maximum Radial Internal Clearance (mm) - 0.23
Mounting Dimension (d1) mm - 94.1
Maximum Mounting Dimension (ras) mm - 0.6
Maximum Mounting Dimension (rbs) mm - 0.8
Dynamic Load Capacity (Cb) N - 722000
Static Load Capacity (Cs) N - 4330000
Weight (kg) - 3.92
Bearing without Seals - SBB 52

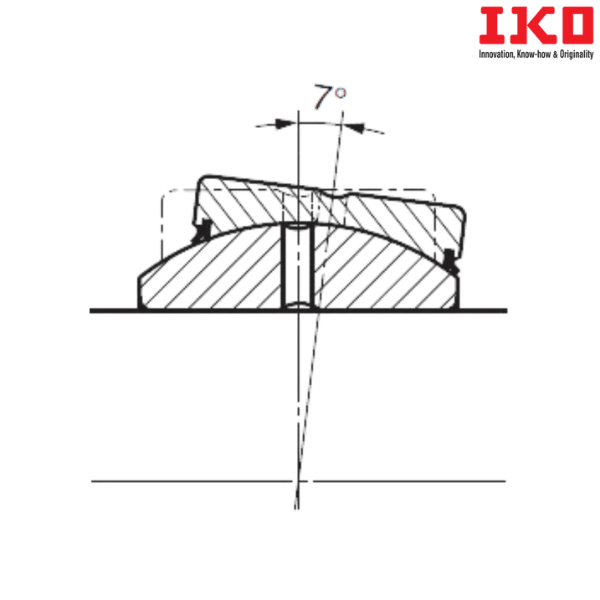

** Images are for representation purposes only
