Description
Brand - IKO
Item Number - SBB 48-2RS IKO
Also Known As - SBB48-2RS
Category - Steel-on-Steel Spherical Bushings Inch Series
Shaft Diameter (mm) - 76.2
Shaft Diameter (inch) - 3
Bore Diameter (d) mm - 76.2
Bore Diameter (d) inch - 3
Outer Diameter (D) mm - 120.65
Outer Diameter (D) inch - 4.75
Width (B) mm - 66.68
Width (B) inch - 2.625
Boundary Dimension (C) mm - 57.15
Boundary Dimension (C) inch - 2.25
Boundary Dimension (dk) mm - 110
Boundary Dimension (dk) inch - 4.331
Minimum Radial Internal Clearance (mm) - 0.1
Maximum Radial Internal Clearance (mm) - 0.2
Mounting Dimension (d1) mm - 86.5
Maximum Mounting Dimension (ras) mm - 0.6
Maximum Mounting Dimension (rbs) mm - 0.8
Dynamic Load Capacity (Cb) N - 616000
Static Load Capacity (Cs) N - 3700000
Weight (kg) - 3.12
Bearing without Seals - SBB 48

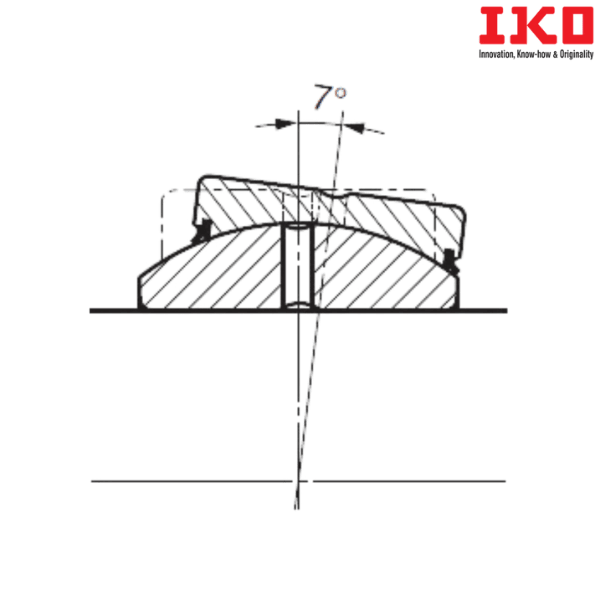

** Images are for representation purposes only
