Description
Brand - IKO
Item Number - SBB 44-2RS IKO
Also Known As - SBB44-2RS
Category - Steel-on-Steel Spherical Bushings Inch Series
Shaft Diameter (mm) - 69.85
Shaft Diameter (inch) - 2.75
Bore Diameter (d) mm - 69.85
Bore Diameter (d) inch - 2.75
Outer Diameter (D) mm - 111.125
Outer Diameter (D) inch - 4.375
Width (B) mm - 61.11
Width (B) inch - 2.406
Boundary Dimension (C) mm - 52.37
Boundary Dimension (C) inch - 2.062
Boundary Dimension (dk) mm - 100
Boundary Dimension (dk) inch - 3.937
Minimum Radial Internal Clearance (mm) - 0.1
Maximum Radial Internal Clearance (mm) - 0.2
Mounting Dimension (d1) mm - 79
Maximum Mounting Dimension (ras) mm - 0.6
Maximum Mounting Dimension (rbs) mm - 0.8
Dynamic Load Capacity (Cb) N - 514000
Static Load Capacity (Cs) N - 3080000
Weight (kg) - 2.44
Bearing without Seals - SBB 44

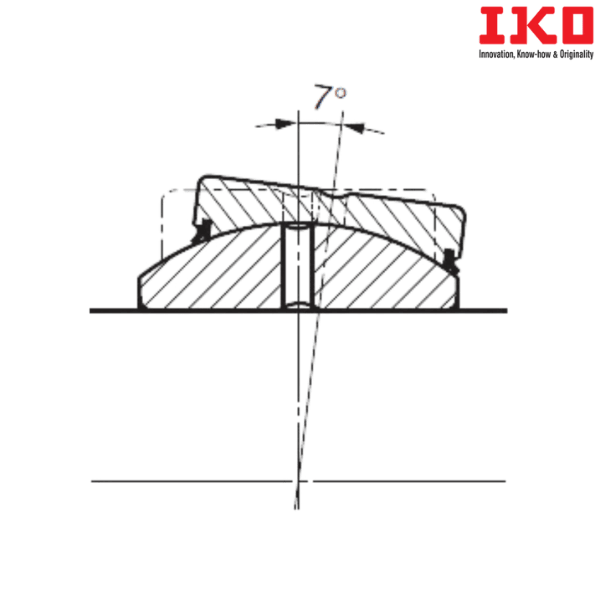

** Images are for representation purposes only
