SB100AR0 RBC

Brand - RBC
Item Number - SB100AR0*RBC
Category - Angular Contact, A-Type Thin Section Ball Bearings

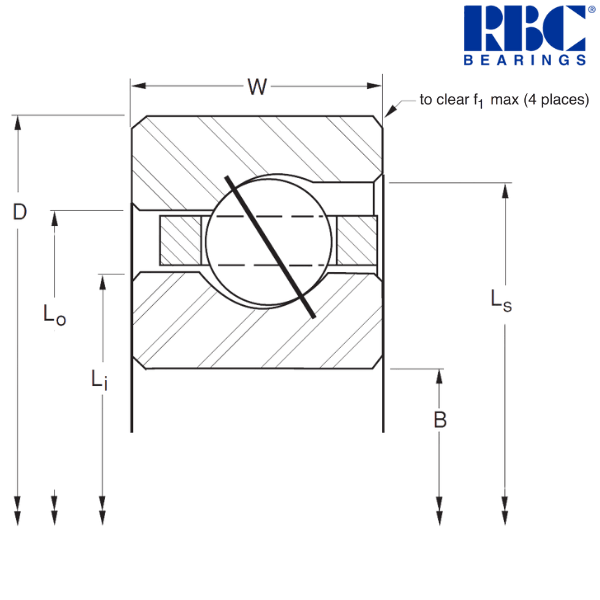

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 10 inch
Outside Diameter (D) - 10.625 inch
Width (W) - 0.3125 inch
Land Diameter of Inner Ring (Li) - 10.234 inch
Land Diameter of Outer Ring (Lo) - 10.391 inch
Land Diameter of Counter Bore (Ls) - 10.469 inch
Housing Fillet (f1) - 0.032 inch
Ball Diameter - 0.15625 inch
Ball Quantity - 139 pcs.
Approximate Weight - 0.73 lbs
Radial Static Load - 4890 lbf
Radial Dynamic Load - 1480 lbf
Thrust Static Load - 14120 lbf
Thrust Dynamic Load - 4290 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 254 mm
Outside Diameter (D) - 269.875 mm
Width (W) - 7.938 mm
Land Diameter of Inner Ring (Li) - 259.94 mm
Land Diameter of Outer Ring (Lo) - 263.93 mm
Land Diameter of Counter Bore (Ls) - 265.91 mm
Housing Fillet (f1) - 0.81 mm
Approximate Weight - 0.331 kg
Radial Static Load - 21750 N
Radial Dynamic Load - 6580 N
Thrust Static Load - 62810 N
Thrust Dynamic Load - 19080 N

Description of Suffixes and Prefixes :
S - No seals or shields
B - Standard Width
A - Angular Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Circular Pocket Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
