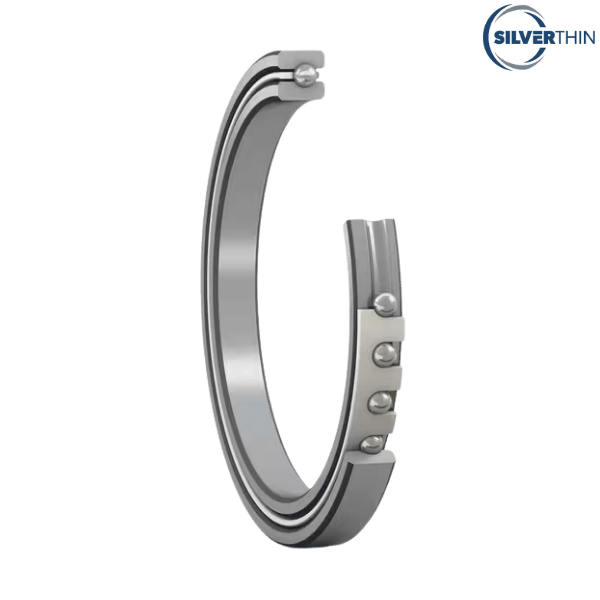

SB090XP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SB090XP0 SILVERTHIN
Category - Open Type 4-Point Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - 4-Point Contact (Type X)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 9 inch
Outside Diameter (D) - 9.625 inch
Width - 0.3125 inch
Land Diameter (L1) - 9.231 inch
Land Diameter (L2) - 9.393 inch
Approximate Weight - 0.66 lbs
Static Radial Load - 3780 lbf
Dynamic Radial Load - 1730 lbf
Static Thrust Load - 9450 lbf
Dynamic Thrust Load - 2880 lbf
Static Moment Load - 17600 in-lbs
Dynamic Moment Load - 6050 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.66 lbs

Description of Suffixes :
X - 4 Point Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 5/32'' balls
• Load capacities are not additive

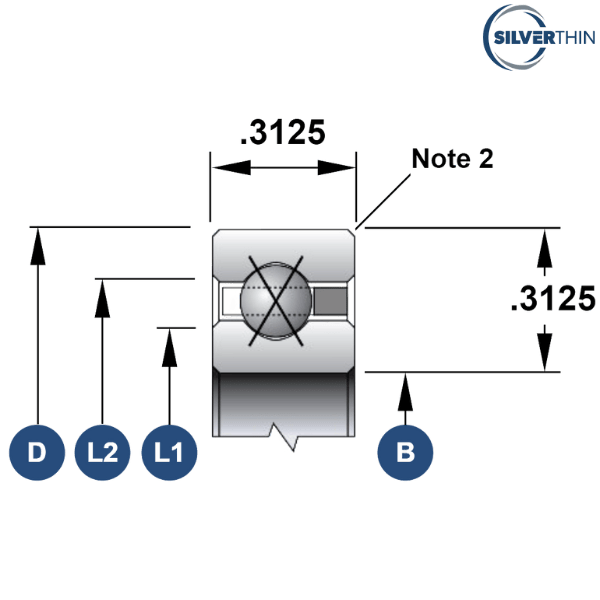

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.040'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SB090XPO
INA - CSXB090
NSK - NBX22807
RBC - KB090XP0*RBC
KAYDON - KB090XP0
SKF - FPXB900
NTN - KXB090
FAG - L18RA900
SSB - RB090XP0

♦ ♦ Images are for representation purposes only
