Description
Brand - SILVERTHIN
Item Number - SB055BR0 SILVERTHIN

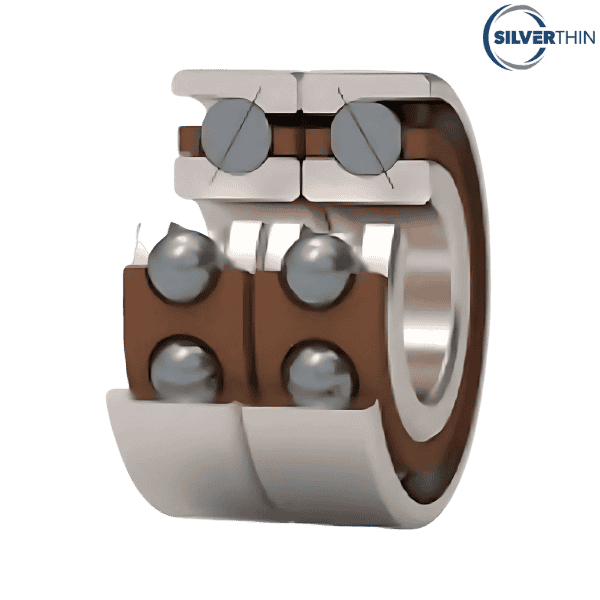

Category - Back-to-Back Paired Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Duplexed (Back-to-Back) (Type B)
Seals, Shields - None (Open)
Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 5.5 inch
Outside Diameter (D) - 6.125 inch
Width - 0.3125 inch
Land Diameter (L1) - 5.731 inch
Land Diameter (L3) - 5.958 inch
Approximate Weight - 0.82 lbs
Static Radial Load - 4450 lbf
Dynamic Radial Load - 1680 lbf
Static Thrust Load - 7920 lbf
Dynamic Thrust Load - 2560 lbf
Static Moment Load - 10085 in-lbs
Dynamic Moment Load - 3795 in-lbs
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.372 kg
Description of Suffixes :
B - Duplexed Back to Back
R - Brass, one piece circular pocket A
0 - ABEC Class 1
Other salient points to be noted :
• Brass; one piece pocket separator 5/32'' balls
• Load capacities are not additive

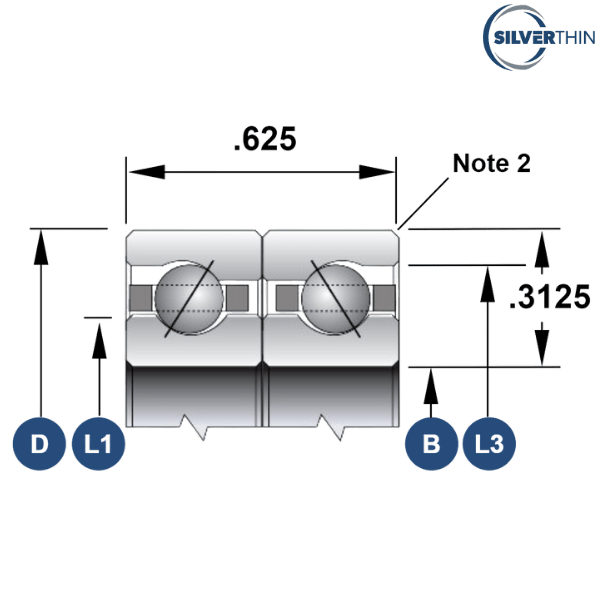

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.040'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.010''
♦ ♦ Images are for representation purposes only
