SB040AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SB040AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

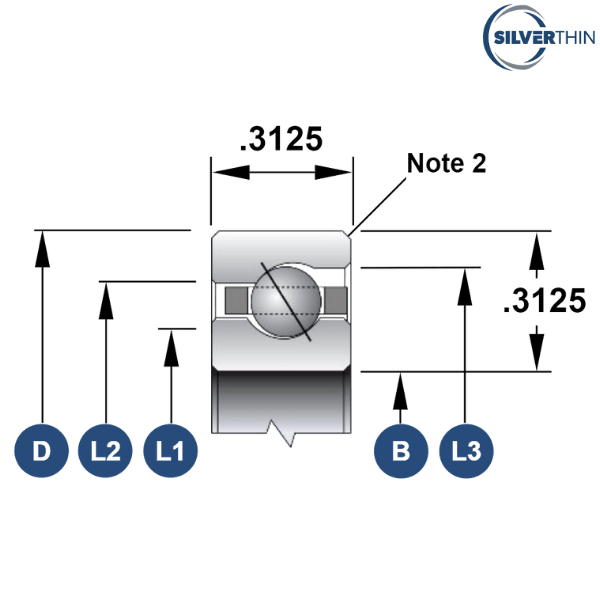

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 4 inch
Outside Diameter (D) - 4.625 inch
Width - 0.3125 inch
Land Diameter (L1) - 4.231 inch
Land Diameter (L2) - 4.393 inch
Land Diameter (L3) - 4.46 inch
Approximate Weight - 0.30 lbs
Static Radial Load - 2040 lbf
Dynamic Radial Load - 865 lbf
Static Thrust Load - 5890 lbf
Dynamic Thrust Load - 2100 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.136 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 5/32'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.040'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SB040ARO
INA - CSEB040
NSK - NBA10107
RBC - KB040AR0*RBC
KAYDON - KB040AR0
SKF - FPAB400
NTN - KYB040
FAG - L15RA400
SSB - RB040AR0

♦ ♦ Images are for representation purposes only
