Description
Brand - KAYDON
Item Number - SB035XP0 KAYDON
Also Known As - KDN.SB035XP0

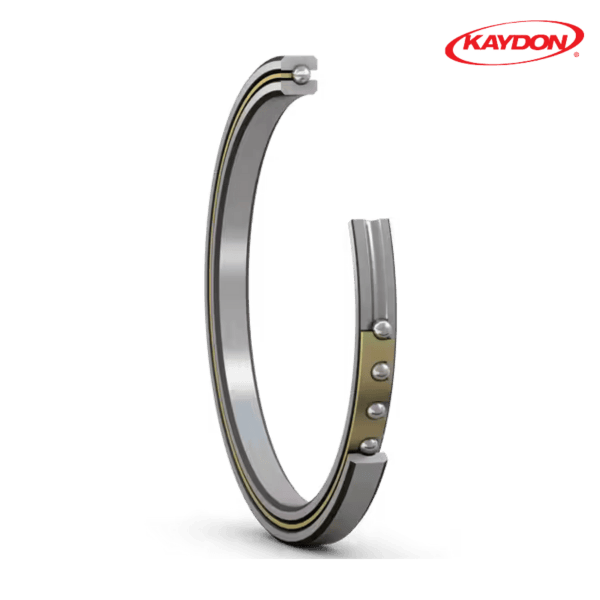

Category - Reali-Slim Thin Section Four Point Contact Ball Bearing

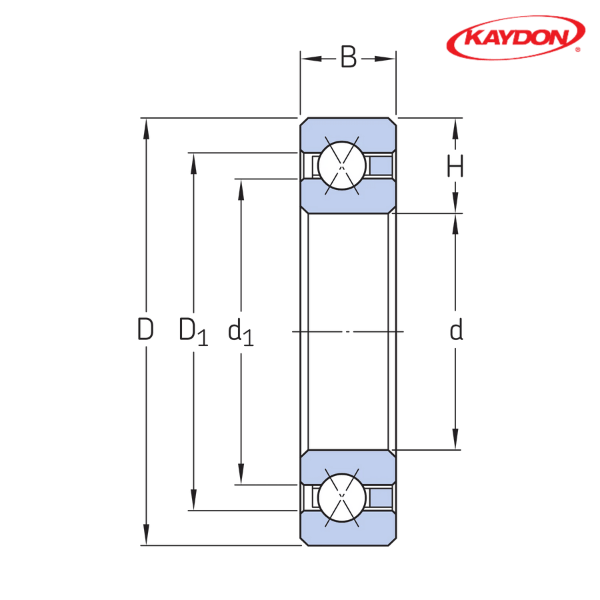

Inner Diameter (d) mm - 88.9
Outer Diameter (D) mm - 104.775
Radial Cross Section (H) mm - 7.938
Width (B) mm - 7.938
Dynamic Load Rating, Radial Direction (CK) kN - 4.51
Basic Static Load Rating, Radial Direction (C0) kN - 6.85
Basic Static Load Rating, Axial Direction (C0a) kN - 17.2
Basic Dynamic Load Rating, Moment (CM) kN·m - 0.164
Basic Static Load Rating, Moment (C0M) kN·m - 0.332
Weight (kg) - 0.12
** Images are for representation purposes only
