SB025AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SB025AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 2.5 inch
Outside Diameter (D) - 3.125 inch
Width - 0.3125 inch
Land Diameter (L1) - 2.731 inch
Land Diameter (L2) - 2.893 inch
Land Diameter (L3) - 2.964 inch
Approximate Weight - 0.19 lbs
Static Radial Load - 1340 lbf
Dynamic Radial Load - 675 lbf
Static Thrust Load - 3860 lbf
Dynamic Thrust Load - 1590 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.086 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 5/32'' balls
• Load capacities are not additive

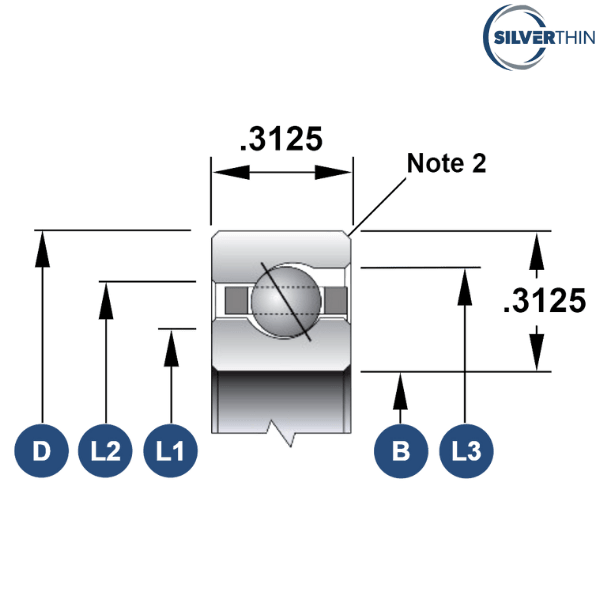

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.040'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SB025ARO
INA - CSEB025
NSK - NBA6307
RBC - KB025AR0*RBC
KAYDON - KB025AR0
SKF - FPAB208
NTN - KYB025
FAG - L15RA208
SSB - RB025AR0

♦ ♦ Images are for representation purposes only
