SB020CP0 RBC

Brand - RBC
Item Number - SB020CP0*RBC
Category - Radial Contact, C-Type Thin Section Ball Bearings

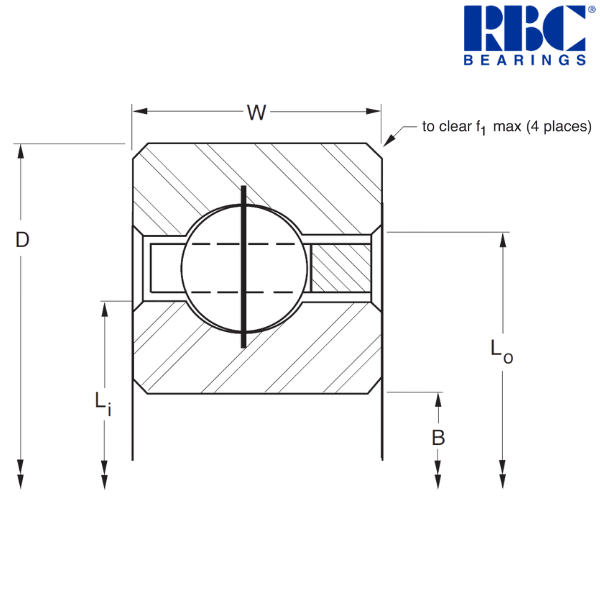

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 2 inch
Outside Diameter (D) - 2.625 inch
Width (W) - 0.3125 inch
Land Diameter of Inner Ring (Li) - 2.234 inch
Land Diameter of Outer Ring (Lo) - 2.391 inch
Housing Fillet (f1) - 0.032 inch
Ball Diameter - 0.15625 inch
Ball Quantity - 23 pcs.
Approximate Weight - 0.16 lbs
Radial Static Load - 930 lbf
Radial Dynamic Load - 800 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 50.8 mm
Outside Diameter (D) - 66.675 mm
Width (W) - 7.938 mm
Land Diameter of Inner Ring (Li) - 56.74 mm
Land Diameter of Outer Ring (Lo) - 60.73 mm
Housing Fillet (f1) - 0.81 mm
Approximate Weight - 0.073 kg
Radial Static Load - 4140 N
Radial Dynamic Load - 3560 N

Description of Suffixes and Prefixes :
S - No seals or shields
B - Standard Width
C - Radial Ball Contact
P - Brass or (Composite)
0 - ABEC 1F

Other salient Points about this Bearing :
• 440C Stainless Steel
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
