SB 9515082 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - SB 9515082 IKO
Also Known As - SB9515082
Category - Steel-on-Steel Spherical Bushings
Shaft Diameter (mm) - 95
Bore Diameter (d) mm - 95
Outer Diameter (D) mm - 150
Width (B) mm - 82
Boundary Dimension (C) mm - 70
Boundary Dimension (dk) mm - 140
Minimum Boundary Dimension (rs) mm - 0.6
Permissible Tilting Angle Degree (α) - 5

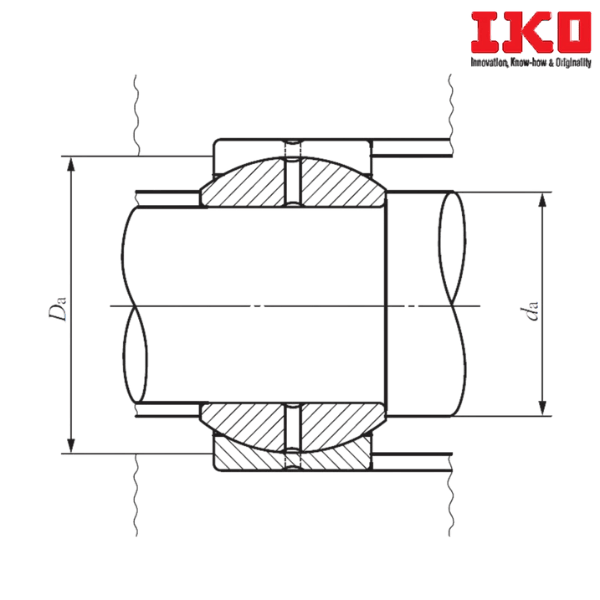

Minimum Mounting Dimension (da) mm - 99.5
Maximum Mounting Dimension (da) mm - 113.5
Maximum Mounting Dimension (Da) mm - 145.5
Minimum Mounting Dimension (Da) mm - 130
Dynamic Load Capacity (Cd) N - 961000
Static Load Capacity (Cs) N - 5770000
Weight (kg) - 6.05
Spherical Plain Bearing - SB 95A

** Images are for representation purposes only
