SB 9014076 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - SB 9014076 IKO
Also Known As - SB9014076
Category - Steel-on-Steel Spherical Bushings
Shaft Diameter (mm) - 90
Bore Diameter (d) mm - 90
Outer Diameter (D) mm - 140
Width (B) mm - 76
Boundary Dimension (C) mm - 65
Boundary Dimension (dk) mm - 130
Minimum Boundary Dimension (rs) mm - 0.6
Permissible Tilting Angle Degree (α) - 5

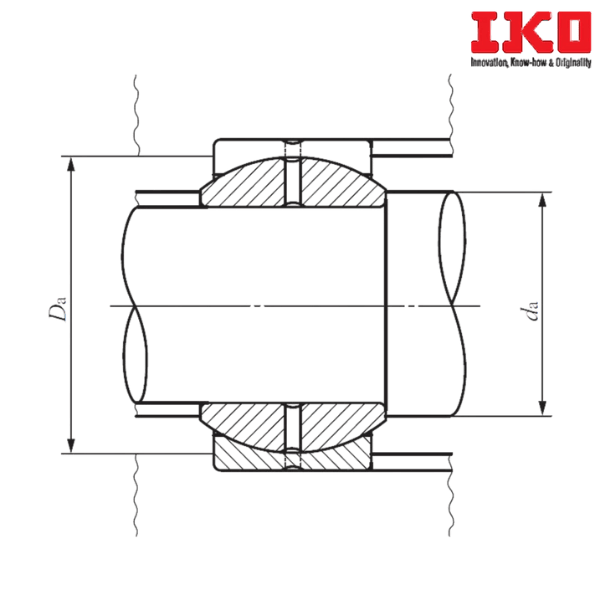

Minimum Mounting Dimension (da) mm - 94.5
Maximum Mounting Dimension (da) mm - 105.5
Maximum Mounting Dimension (Da) mm - 135.5
Minimum Mounting Dimension (Da) mm - 121
Dynamic Load Capacity (Cd) N - 829000
Static Load Capacity (Cs) N - 4970000
Weight (kg) - 4.71
Spherical Plain Bearing - SB 90A

** Images are for representation purposes only
