SB 7011058 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - SB 7011058 IKO
Also Known As - SB7011058
Category - Steel-on-Steel Spherical Bushings
Shaft Diameter (mm) - 70
Bore Diameter (d) mm - 70
Outer Diameter (D) mm - 110
Width (B) mm - 58
Boundary Dimension (C) mm - 50
Boundary Dimension (dk) mm - 100
Minimum Boundary Dimension (rs) mm - 0.6
Permissible Tilting Angle Degree (α) - 5

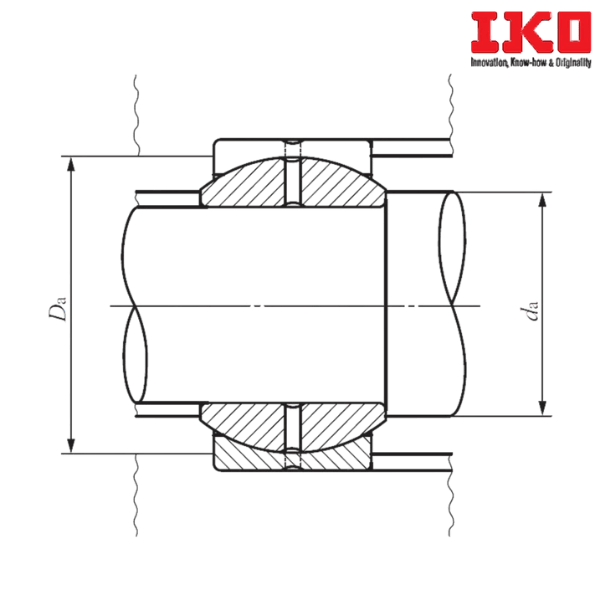

Minimum Mounting Dimension (da) mm - 74.5
Maximum Mounting Dimension (da) mm - 81.5
Maximum Mounting Dimension (Da) mm - 105.5
Minimum Mounting Dimension (Da) mm - 93
Dynamic Load Capacity (Cd) N - 490000
Static Load Capacity (Cs) N - 2940000
Weight (kg) - 2.22
Spherical Plain Bearing - SB 70A

** Images are for representation purposes only
