SB 6510555 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - SB 6510555 IKO
Also Known As - SB6510555
Category - Steel-on-Steel Spherical Bushings
Shaft Diameter (mm) - 65
Bore Diameter (d) mm - 65
Outer Diameter (D) mm - 105
Width (B) mm - 55
Boundary Dimension (C) mm - 47
Boundary Dimension (dk) mm - 94
Minimum Boundary Dimension (rs) mm - 0.6
Permissible Tilting Angle Degree (α) - 5
Minimum Mounting Dimension (da) mm - 69.5
Maximum Mounting Dimension (da) mm - 76
Maximum Mounting Dimension (Da) mm - 100.5
Minimum Mounting Dimension (Da) mm - 87
Dynamic Load Capacity (Cd) N - 433000
Static Load Capacity (Cs) N - 2600000
Weight (kg) - 2.05
Spherical Plain Bearing - SB 65A

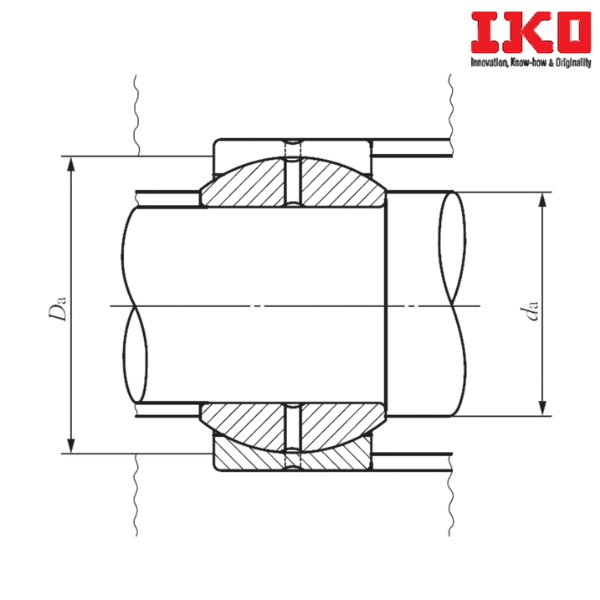

** Images are for representation purposes only
