SB 559047 IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Item Number - SB 559047 IKO
Also Known As - SB559047
Category - Steel-on-Steel Spherical Bushings
Shaft Diameter (mm) - 55
Bore Diameter (d) mm - 55
Outer Diameter (D) mm - 90
Width (B) mm - 47
Boundary Dimension (C) mm - 40
Boundary Dimension (dk) mm - 80
Minimum Boundary Dimension (rs) mm - 0.6
Permissible Tilting Angle Degree (α) - 5

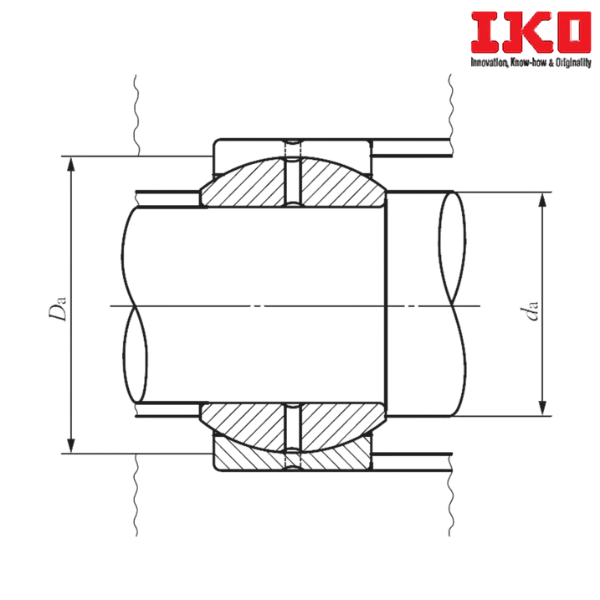

Minimum Mounting Dimension (da) mm - 59.5
Maximum Mounting Dimension (da) mm - 64.5
Maximum Mounting Dimension (Da) mm - 85.5
Minimum Mounting Dimension (Da) mm - 74.5
Dynamic Load Capacity (Cd) N - 314000
Static Load Capacity (Cs) N - 1880000
Weight (kg) - 1.26
Spherical Plain Bearing - SB 55A

** Images are for representation purposes only
