SB 355530 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - SB 355530 IKO
Also Known As - SB355530
Category - Steel-on-Steel Spherical Bushings
Shaft Diameter (mm) - 35
Bore Diameter (d) mm - 35
Outer Diameter (D) mm - 55
Width (B) mm - 30
Boundary Dimension (C) mm - 26
Boundary Dimension (dk) mm - 50
Minimum Boundary Dimension (rs) mm - 0.6
Permissible Tilting Angle Degree (α) - 5
Minimum Mounting Dimension (da) mm - 39.5
Maximum Mounting Dimension (da) mm - 40
Maximum Mounting Dimension (Da) mm - 50.5
Minimum Mounting Dimension (Da) mm - 46.5
Dynamic Load Capacity (Cd) N - 127000
Static Load Capacity (Cs) N - 765000
Weight (kg) - 0.300

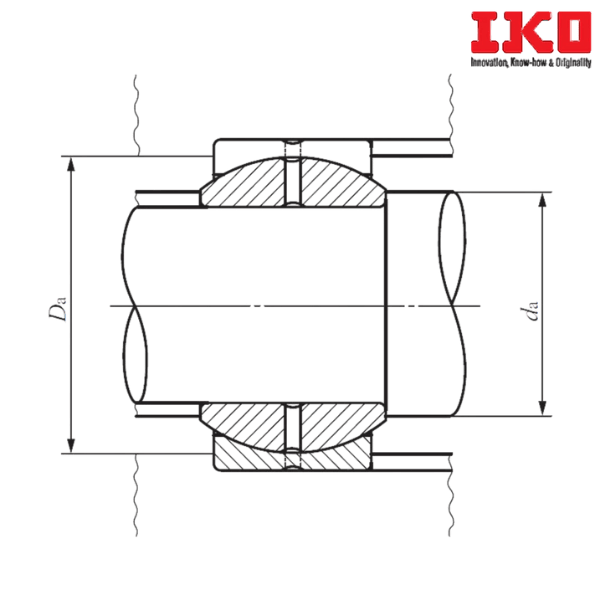

Spherical Plain Bearing - SB 35A

** Images are for representation purposes only
