SB 150220120 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - SB 150220120 IKO
Also Known As - SB150220120
Category - Steel-on-Steel Spherical Bushings
Shaft Diameter (mm) - 150
Bore Diameter (d) mm - 150
Outer Diameter (D) mm - 220
Width (B) mm - 120
Boundary Dimension (C) mm - 105
Boundary Dimension (dk) mm - 205
Minimum Boundary Dimension (rs) mm - 1
Permissible Tilting Angle Degree (α) - 5

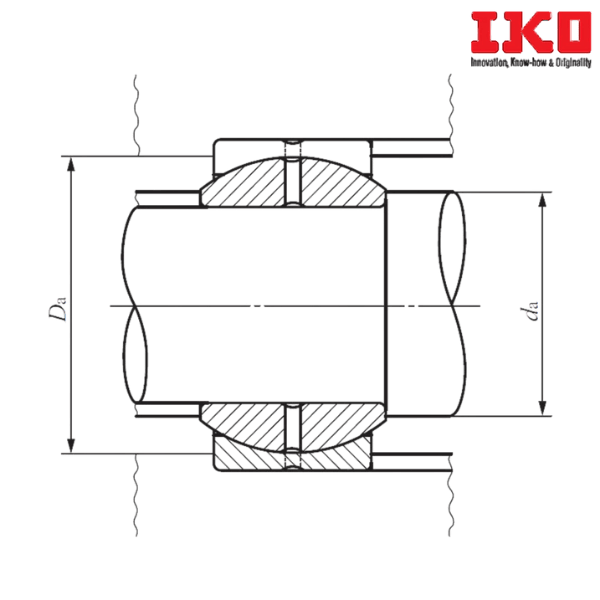

Minimum Mounting Dimension (da) mm - 155.5
Maximum Mounting Dimension (da) mm - 166
Maximum Mounting Dimension (Da) mm - 214.5
Minimum Mounting Dimension (Da) mm - 189
Dynamic Load Capacity (Cd) N - 2110000
Static Load Capacity (Cs) N - 12700000
Weight (kg) - 17.0
Spherical Plain Bearing - SB 150A

** Images are for representation purposes only
