SAA10XL0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SAA10XL0 SILVERTHIN
Category - Open Type 4-Point Contact Thin Section Bearing
Separator - Nylon; one piece snapover separator
Precision Class - ABEC Class 1
Bearing Type - 4-Point Contact (Type X)
Seals, Shields - None (Open)

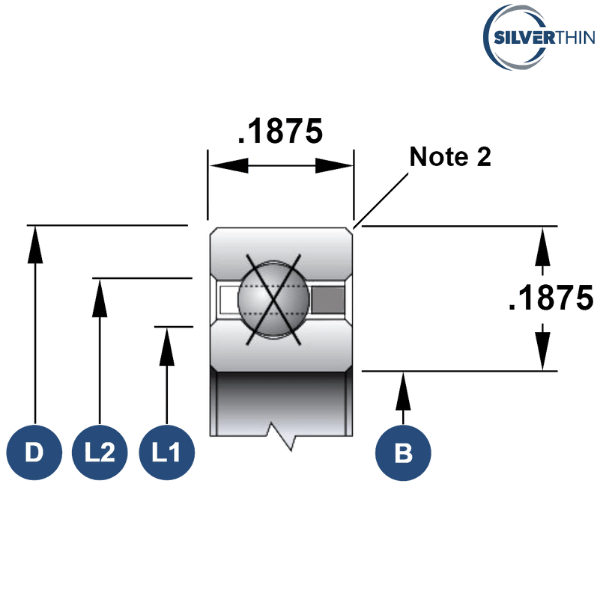

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 1 inch
Outside Diameter (D) - 1.375 inch
Width - 0.1875 inch
Land Diameter (L1) - 1.14 inch
Land Diameter (L2) - 1.235 inch
Approximate Weight - 0.03 lbs
Static Radial Load - 290 lbf
Dynamic Radial Load - 245 lbf
Static Thrust Load - 730 lbf
Dynamic Thrust Load - 370 lbf
Static Moment Load - 170 in-lbs
Dynamic Moment Load - 110 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.03 lbs

Description of Suffixes :
X - 4 Point Contact
L - Nylon, one piece snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Nylon; one piece snapover separator 3/32'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.015'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SAA10XLO
INA - CSXAA010
NSK - NBX2504
RBC - KAA10XL0*RBC
KAYDON - KAA10XL0
SKF - FPXB100
NTN - KXS010
FAG - L18PA100
SSB - RAA10XL0

♦ ♦ Images are for representation purposes only
