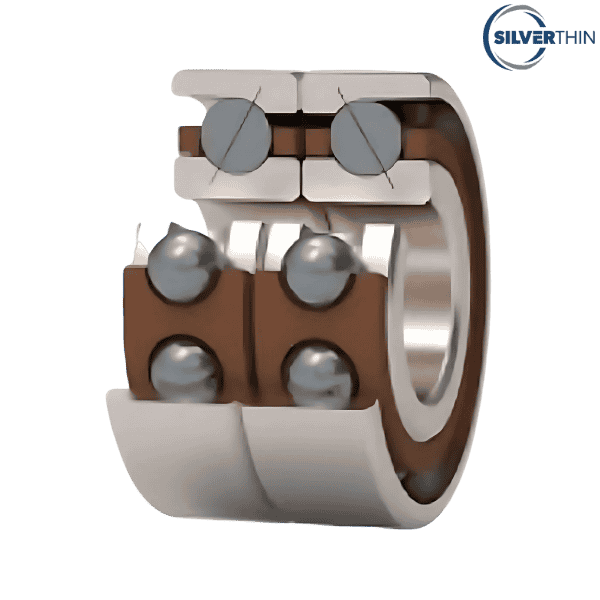

SAA10BG0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SAA10BG0 SILVERTHIN
Category - Back-to-Back Paired Angular Contact Thin Section Bearing
Separator - Nylon; circular pocket separator
Precision Class - ABEC Class 1
Bearing Type - Duplexed (Back-to-Back) (Type B)
Seals, Shields - None (Open)

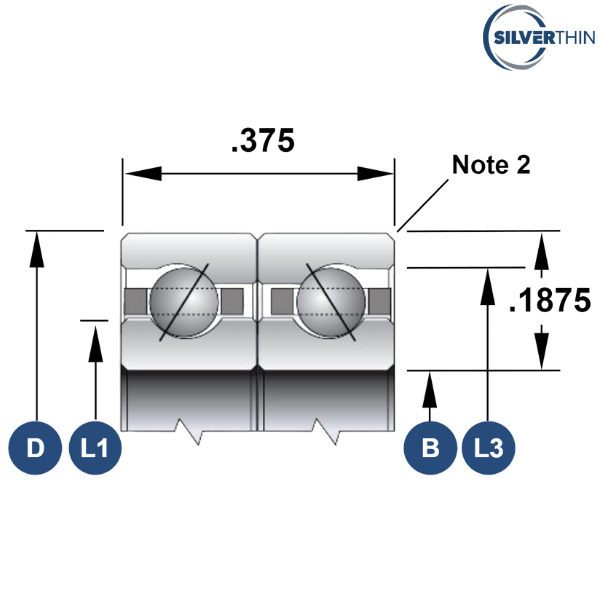

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 1 inch
Outside Diameter (D) - 1.375 inch
Width - 0.1875 inch
Land Diameter (L1) - 1.14 inch
Land Diameter (L3) - 1.274 inch
Approximate Weight - 0.05 lbs
Static Radial Load - 550 lbf
Dynamic Radial Load - 310 lbf
Static Thrust Load - 970 lbf
Dynamic Thrust Load - 450 lbf
Static Moment Load - 295 in-lbs
Dynamic Moment Load - 170 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.023 kg

Description of Suffixes :
B - Duplexed Back to Back
G - Nylon, circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Nylon; circular pocket separator 3/32'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.015'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.010''

♦ ♦ Images are for representation purposes only
