SA110XP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SA110XP0 SILVERTHIN
Category - Open Type 4-Point Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - 4-Point Contact (Type X)
Seals, Shields - None (Open)

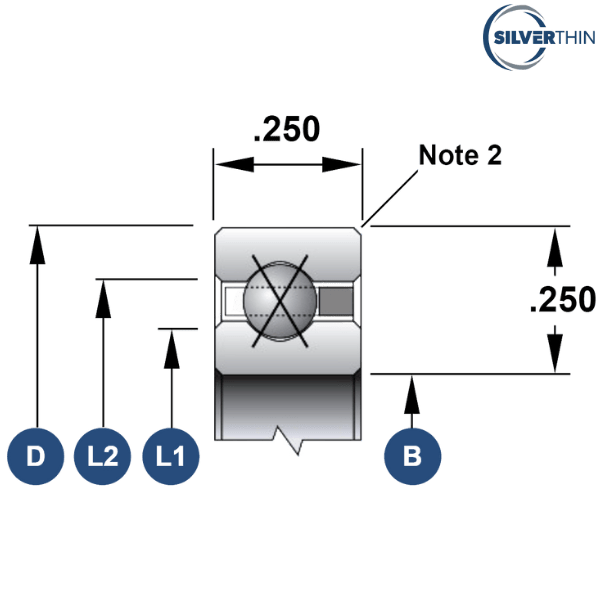

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 11 inch
Outside Diameter (D) - 11.5 inch
Width - 0.25 inch
Land Diameter (L1) - 11.186 inch
Land Diameter (L2) - 11.314 inch
Approximate Weight - 0.52 lbs
Static Radial Load - 3410 lbf
Dynamic Radial Load - 1360 lbf
Static Thrust Load - 8540 lbf
Dynamic Thrust Load - 2320 lbf
Static Moment Load - 19210 in-lbs
Dynamic Moment Load - 5750 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.52 lbs

Description of Suffixes :
X - 4 Point Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 1/8'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.025'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SA110XPO
INA - CSXA110
NSK - NBX27606
RBC - KA110XP0*RBC
KAYDON - KA110XP0
SKF - FPXA1100
NTN - KXA110
FAG - L18QA1100
SSB - RA110XP0
