Description
Brand - SILVERTHIN
Item Number - SA110AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)
Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 11 inch
Outside Diameter (D) - 11.5 inch
Width - 0.25 inch
Land Diameter (L1) - 11.186 inch
Land Diameter (L2) - 11.314 inch
Land Diameter (L3) - 11.353 inch
Approximate Weight - 0.52 lbs
Static Radial Load - 3940 lbf
Dynamic Radial Load - 1070 lbf
Static Thrust Load - 11380 lbf
Dynamic Thrust Load - 2810 lbf
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.236 kg
Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1
Other salient points to be noted :
• Brass; one piece pocket separator 1/8'' balls
• Load capacities are not additive

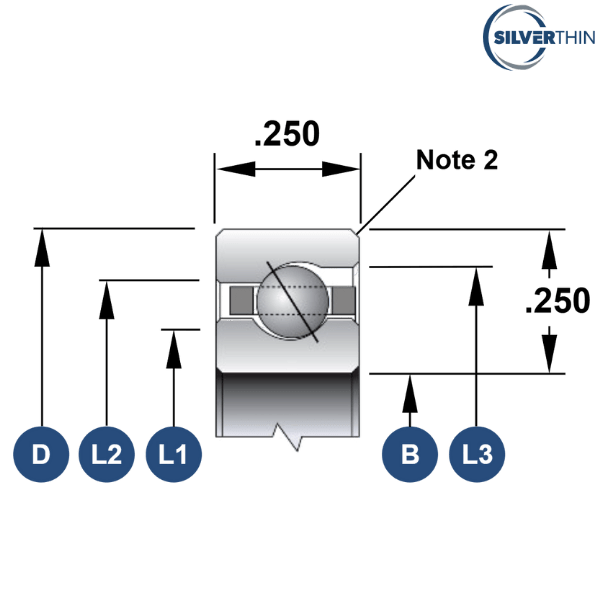

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.025'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''
Interchange :
SILVERTHIN - SA110ARO
INA - CSEA110
NSK - NBA27906
RBC - KA110AR0*RBC
KAYDON - KA110AR0
SKF - FPAA1100
NTN - KYA110
FAG - L15QA1100
SSB - RA110AR0
♦ ♦ Images are for representation purposes only
