Description
Brand - SILVERTHIN
Item Number - SA100AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)
Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 10 inch
Outside Diameter (D) - 10.5 inch
Width - 0.25 inch
Land Diameter (L1) - 10.186 inch
Land Diameter (L2) - 10.314 inch
Land Diameter (L3) - 10.355 inch
Approximate Weight - 0.50 lbs
Static Radial Load - 3590 lbf
Dynamic Radial Load - 1015 lbf
Static Thrust Load - 10370 lbf
Dynamic Thrust Load - 2640 lbf
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.227 kg
Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1
Other salient points to be noted :
• Brass; one piece pocket separator 1/8'' balls
• Load capacities are not additive

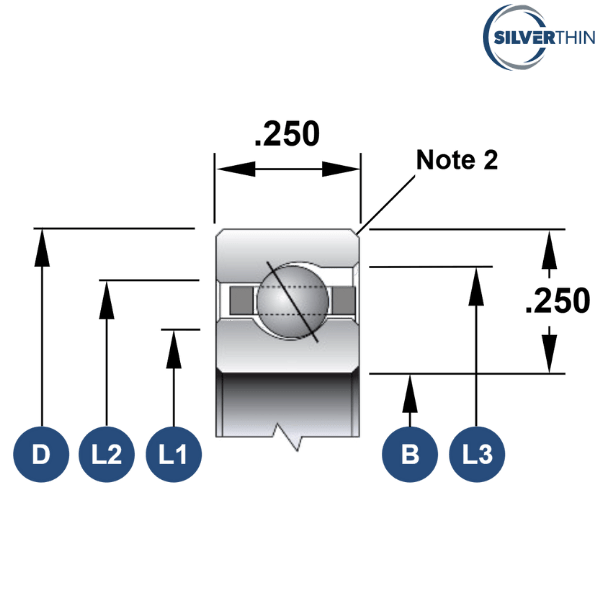

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.025'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''
Interchange :
SILVERTHIN - SA100ARO
INA - CSEA100
NSK - NBA25406
RBC - KA100AR0*RBC
KAYDON - KA100AR0
SKF - FPAA1000
NTN - KYA100
FAG - L15QA1000
SSB - RA100AR0
♦ ♦ Images are for representation purposes only
