SA080XP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SA080XP0 SILVERTHIN
Category - Open Type 4-Point Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - 4-Point Contact (Type X)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 8 inch
Outside Diameter (D) - 8.5 inch
Width - 0.25 inch
Land Diameter (L1) - 8.186 inch
Land Diameter (L2) - 8.314 inch
Approximate Weight - 0.38 lbs
Static Radial Load - 2500 lbf
Dynamic Radial Load - 1130 lbf
Static Thrust Load - 6260 lbf
Dynamic Thrust Load - 1890 lbf
Static Moment Load - 10330 in-lbs
Dynamic Moment Load - 3500 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.38 lbs

Description of Suffixes :
X - 4 Point Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 1/8'' balls
• Load capacities are not additive

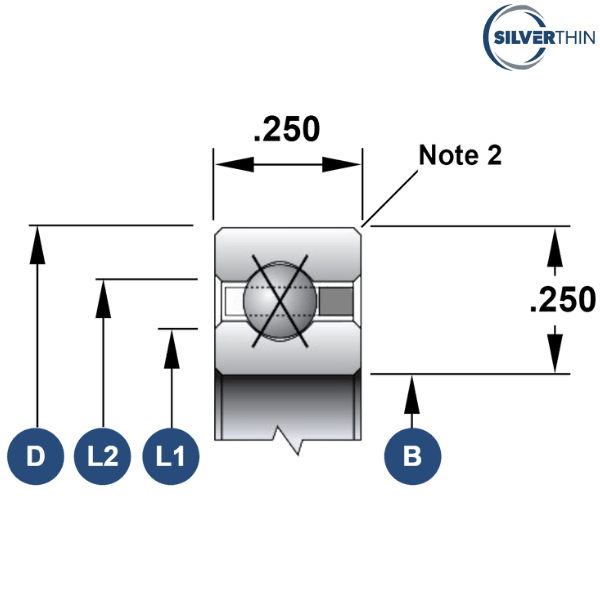

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.025'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SA080XPO
INA - CSXA080
NSK - NBX20306
RBC - KA080XP0*RBC
KAYDON - KA080XP0
SKF - FPXA800
NTN - KXA080
FAG - L18QA800
SSB - RA080XP0

♦ ♦ Images are for representation purposes only
