SA080AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SA080AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 8 inch
Outside Diameter (D) - 8.5 inch
Width - 0.25 inch
Land Diameter (L1) - 8.186 inch
Land Diameter (L2) - 8.314 inch
Land Diameter (L3) - 8.359 inch
Approximate Weight - 0.38 lbs
Static Radial Load - 2890 lbf
Dynamic Radial Load - 890 lbf
Static Thrust Load - 8350 lbf
Dynamic Thrust Load - 2280 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.172 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 1/8'' balls
• Load capacities are not additive

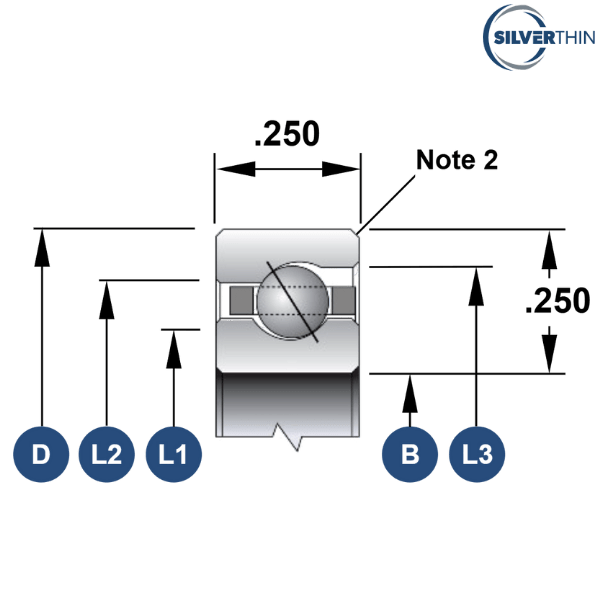

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.025'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SA080ARO
INA - CSEA080
NSK - NBA20306
RBC - KA080AR0*RBC
KAYDON - KA080AR0
SKF - FPAA800
NTN - KYA080
FAG - L15QA800
SSB - RA080AR0

♦ ♦ Images are for representation purposes only
