SA075XP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SA075XP0 SILVERTHIN
Category - Open Type 4-Point Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - 4-Point Contact (Type X)
Seals, Shields - None (Open)

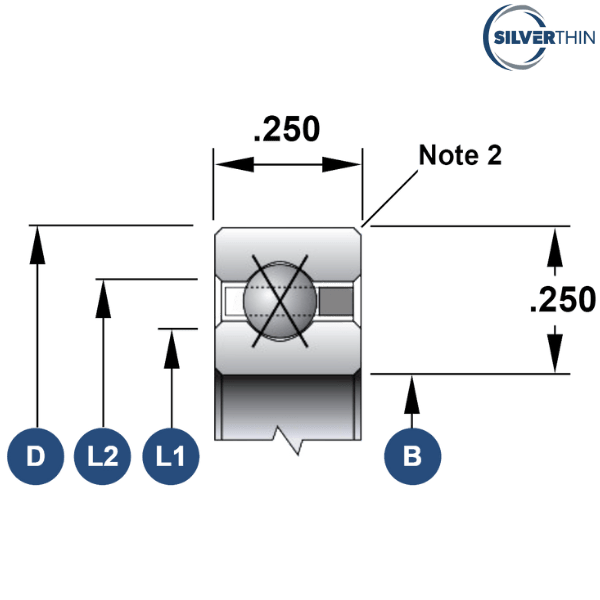

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7.5 inch
Outside Diameter (D) - 8 inch
Width - 0.25 inch
Land Diameter (L1) - 7.686 inch
Land Diameter (L2) - 7.814 inch
Approximate Weight - 0.34 lbs
Static Radial Load - 2350 lbf
Dynamic Radial Load - 1090 lbf
Static Thrust Load - 5880 lbf
Dynamic Thrust Load - 1810 lbf
Static Moment Load - 9120 in-lbs
Dynamic Moment Load - 3165 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.34 lbs

Description of Suffixes :
X - 4 Point Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 1/8'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.025'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SA075XPO
INA - CSXA075
NSK - NBX19006
RBC - KA075XP0*RBC
KAYDON - KA075XP0
SKF - FPXA708
NTN - KXA075
FAG - L18QA708
SSB - RA075XP0

♦ ♦ Images are for representation purposes only
