Description
Brand - SILVERTHIN
Item Number - SA075AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)
Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 7.5 inch
Outside Diameter (D) - 8 inch
Width - 0.25 inch
Land Diameter (L1) - 7.686 inch
Land Diameter (L2) - 7.814 inch
Land Diameter (L3) - 7.861 inch
Approximate Weight - 0.34 lbs
Static Radial Load - 2720 lbf
Dynamic Radial Load - 855 lbf
Static Thrust Load - 7840 lbf
Dynamic Thrust Load - 2190 lbf
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.154 kg
Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1
Other salient points to be noted :
• Brass; one piece pocket separator 1/8'' balls
• Load capacities are not additive

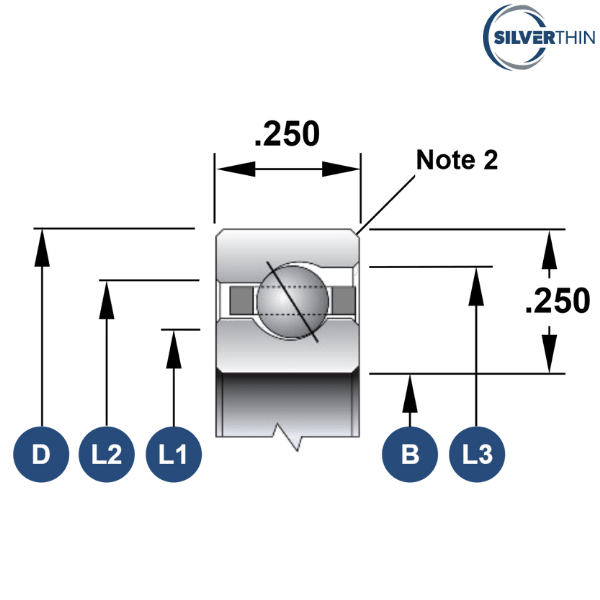

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.025'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''
Interchange :
SILVERTHIN - SA075ARO
INA - CSEA075
NSK - NBA19006
RBC - KA075AR0*RBC
KAYDON - KA075AR0
SKF - FPAA708
NTN - KYA075
FAG - L15QA708
SSB - RA075AR0
♦ ♦ Images are for representation purposes only
