SA060XP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SA060XP0 SILVERTHIN
Category - Open Type 4-Point Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - 4-Point Contact (Type X)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 6 inch
Outside Diameter (D) - 6.5 inch
Width - 0.25 inch
Land Diameter (L1) - 6.186 inch
Land Diameter (L2) - 6.314 inch
Approximate Weight - 0.28 lbs
Static Radial Load - 1900 lbf
Dynamic Radial Load - 955 lbf
Static Thrust Load - 4740 lbf
Dynamic Thrust Load - 1570 lbf
Static Moment Load - 5930 in-lbs
Dynamic Moment Load - 2240 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.28 lbs

Description of Suffixes :
X - 4 Point Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 1/8'' balls
• Load capacities are not additive

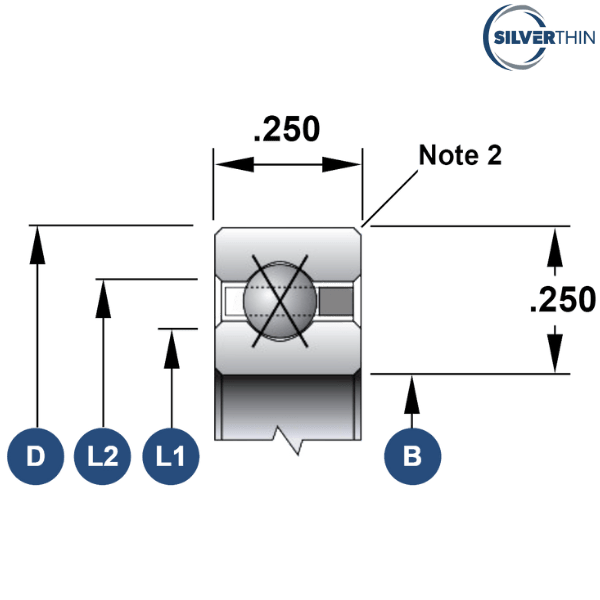

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.025'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SA060XPO
INA - CSXA060
NSK - NBX15206
RBC - KA060XP0*RBC
KAYDON - KA060XP0
SKF - FPXA600
NTN - KXA060
FAG - L18QA600
SSB - RA060XP0

♦ ♦ Images are for representation purposes only
