SA050XP0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SA050XP0 SILVERTHIN
Category - Open Type 4-Point Contact Thin Section Bearing
Separator - Brass; snapover separator
Precision Class - ABEC Class 1
Bearing Type - 4-Point Contact (Type X)
Seals, Shields - None (Open)

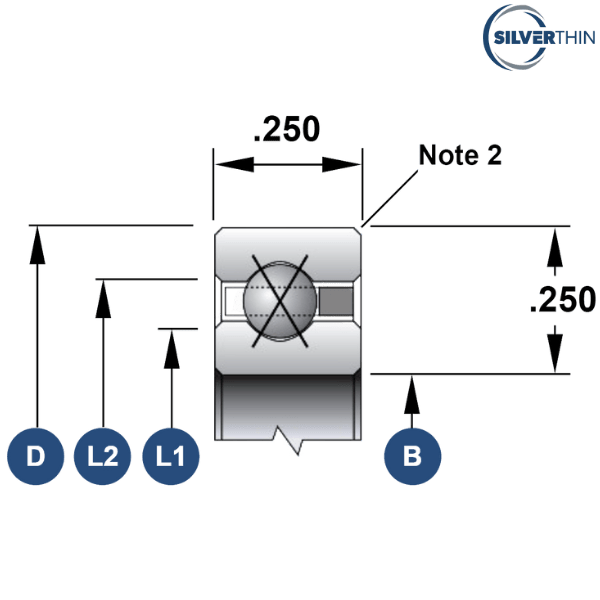

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 5 inch
Outside Diameter (D) - 5.5 inch
Width - 0.25 inch
Land Diameter (L1) - 5.186 inch
Land Diameter (L2) - 5.314 inch
Approximate Weight - 0.24 lbs
Static Radial Load - 1590 lbf
Dynamic Radial Load - 860 lbf
Static Thrust Load - 3980 lbf
Dynamic Thrust Load - 1400 lbf
Static Moment Load - 4180 in-lbs
Dynamic Moment Load - 1695 in-lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.24 lbs

Description of Suffixes :
X - 4 Point Contact
P - Brass, snapover C & X
0 - ABEC Class 1

Other salient points to be noted :
• Brass; snapover separator 1/8'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.025'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SA050XPO
INA - CSXA050
NSK - NBX12706
RBC - KA050XP0*RBC
KAYDON - KA050XP0
SKF - FPXA500
NTN - KXA050
FAG - L18QA500
SSB - RA050XP0

♦ ♦ Images are for representation purposes only
