SA030AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SA030AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 3 inch
Outside Diameter (D) - 3.5 inch
Width - 0.25 inch
Land Diameter (L1) - 3.186 inch
Land Diameter (L2) - 3.314 inch
Land Diameter (L3) - 3.367 inch
Approximate Weight - 0.15 lbs
Static Radial Load - 1140 lbf
Dynamic Radial Load - 505 lbf
Static Thrust Load - 3290 lbf
Dynamic Thrust Load - 1230 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.068 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 1/8'' balls
• Load capacities are not additive

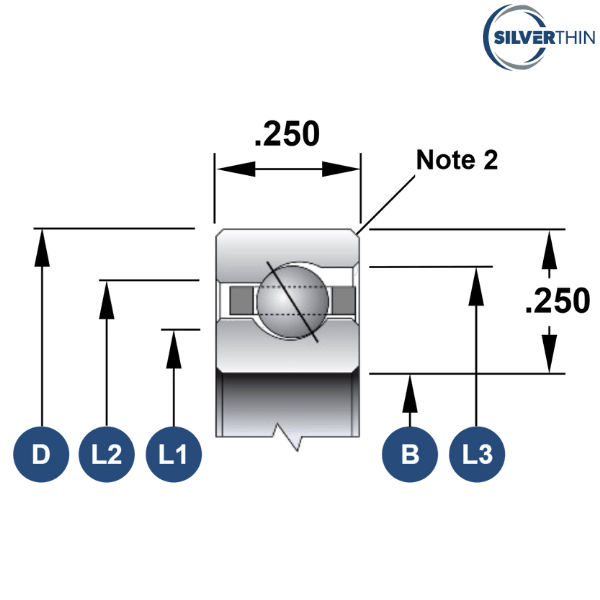

• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.025'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SA030ARO
INA - CSEA030
NSK - NBA7606
RBC - KA030AR0*RBC
KAYDON - KA030AR0
SKF - FPAA300
NTN - KYA030
FAG - L15QA300
SSB - RA030AR0

♦ ♦ Images are for representation purposes only
