SA025XP0 KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - SA025XP0 KAYDON
Also Known As - KDN.SA025XP0

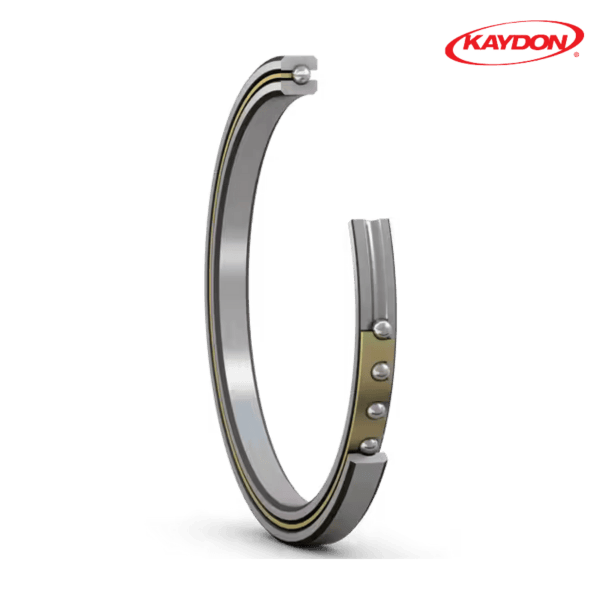

Category - Reali-Slim Thin Section Four Point Contact Ball Bearing

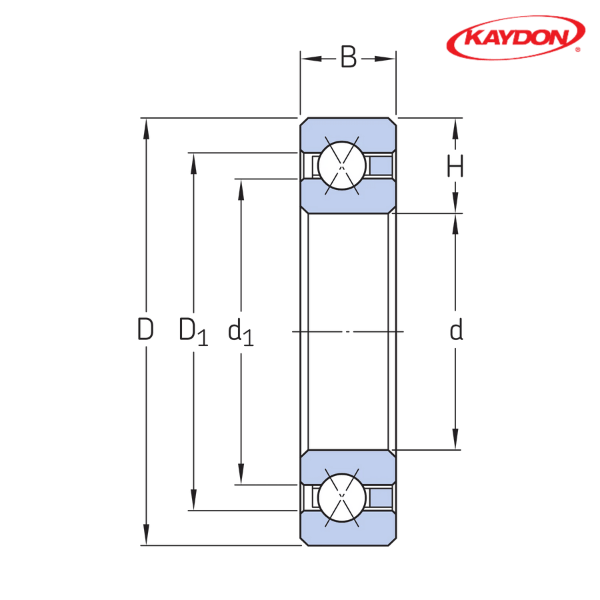

Inner Diameter (d) mm - 63.5
Outer Diameter (D) mm - 76.2
Radial Cross Section (H) mm - 6.35
Width (B) mm - 6.35
Dynamic Load Rating, Radial Direction (CK) kN - 2.59
Basic Static Load Rating, Radial Direction (C0) kN - 3.69
Basic Static Load Rating, Axial Direction (C0a) kN - 9.3
Basic Dynamic Load Rating, Moment (CM) kN·m - 0.0679
Basic Static Load Rating, Moment (C0M) kN·m - 0.13
Weight (kg) - 0.059

** Images are for representation purposes only
