SA020AR0 SILVERTHIN

Brand - SILVERTHIN
Item Number - SA020AR0 SILVERTHIN
Category - Open Type Angular Contact Thin Section Bearing
Separator - Brass; one piece pocket separator
Precision Class - ABEC Class 1
Bearing Type - Angular Contact (Type A)
Seals, Shields - None (Open)

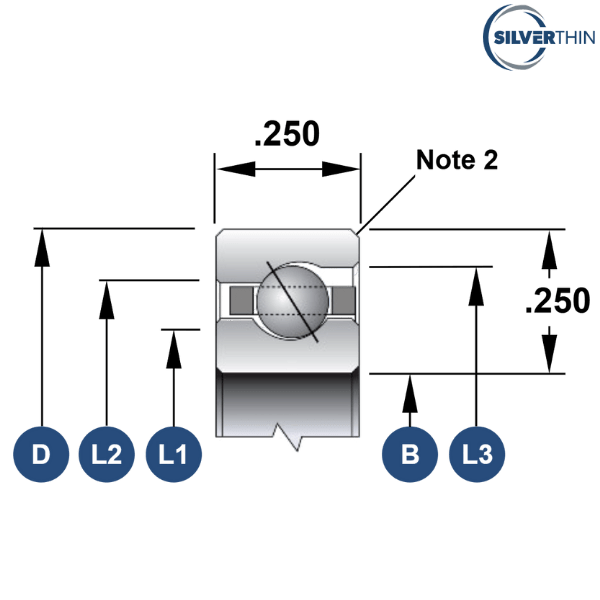

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 2 inch
Outside Diameter (D) - 2.5 inch
Width - 0.25 inch
Land Diameter (L1) - 2.186 inch
Land Diameter (L2) - 2.314 inch
Land Diameter (L3) - 2.369 inch
Approximate Weight - 0.10 lbs
Static Radial Load - 790 lbf
Dynamic Radial Load - 405 lbf
Static Thrust Load - 2280 lbf
Dynamic Thrust Load - 960 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.045 kg

Description of Suffixes :
A - Angular Contact
R - Brass, one piece circular pocket A
0 - ABEC Class 1

Other salient points to be noted :
• Brass; one piece pocket separator 1/8'' balls
• Load capacities are not additive
• Note 2 : The maximum shaft or housing fillet radius that the bearing corners will clear for this series is 0.025'' (refer to the image)
• Race Width Tolerance: +0.000 to -0.005''

Interchange :
SILVERTHIN - SA020ARO
INA - CSEA020
NSK - NBA5006
RBC - KA020AR0*RBC
KAYDON - KA020AR0
SKF - FPAA200
NTN - KYA020
FAG - L15QA200
SSB - RA020AR0

♦ ♦ Images are for representation purposes only
