Description
Brand - NEW WAY
Item Number - S90F035 NEW WAY
Category - Air Fittings Straight

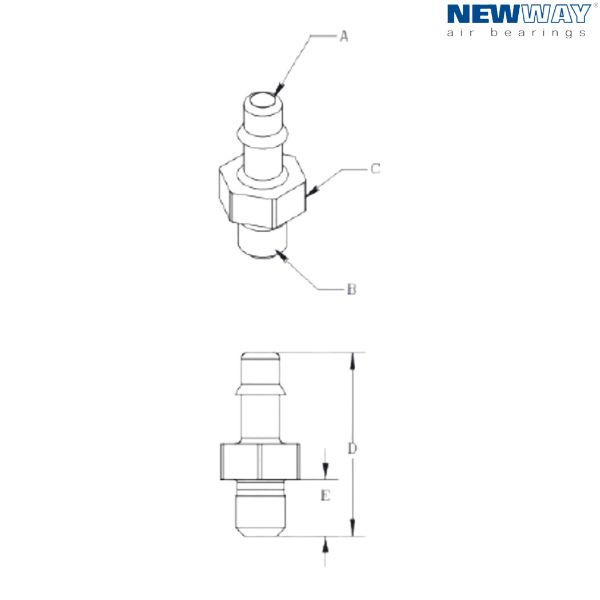

Thread Size - 10-32
Imperial :
Mating Tube Inner Diameter (inch) - 0.078
Fitting Hex Size (inch) - 0.25
Overall Length (inch) - 0.453125
Thread Depth (inch) - 0.15625
Metric :
Mating Tube Inner Diameter (mm) - 2
Fitting Hex Size (mm) - 6.35
Overall Length (mm) - 11.5
Thread Depth (mm) - 4
Notes :
Compatible With: Clear Polyurethane Tubing
S90T002 – I.D./ O.D. – 0.078/ 0.156
Compatible With: Air Bushings, English
S307501 – 3.00″ I.D.
S305001 – 2.00″ I.D.
S303801 – 1.50″ I.D.

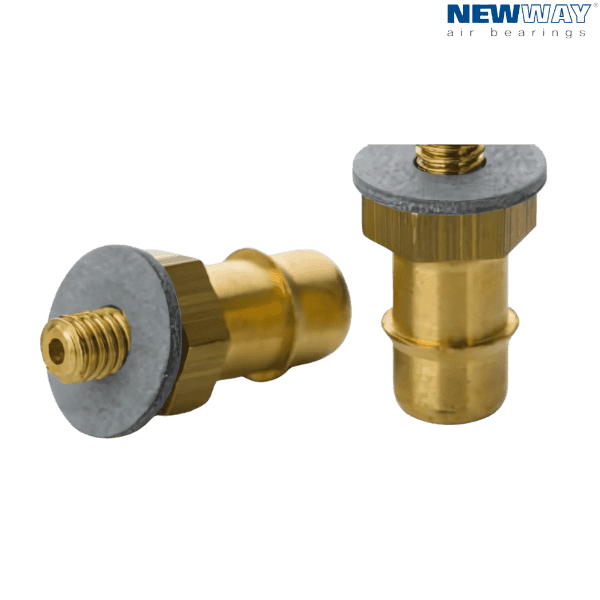

** Images are for representation purposes only
