Description
Brand - ZEN
Item Number - S7308-B ZEN
Category - Single Row Angular Contact Ball Bearing
Inner Ring Dimension (d) mm - 40
Outer Ring Dimension (D) mm - 90
Width (B) mm - 23
Dynamic Load Rating (N) - 34510
Static Load Rating (N) - 20930
Limiting Speed (Grease) - 6.8
Limiting Speed (Oil) - 9.1
Weight (kg) - 0.6
Radial Play - 0.009-0.029
Outer Ring Material - AISI 420/440
Inner Ring Material - AISI 420/440
Ball Material - AISI 420/440

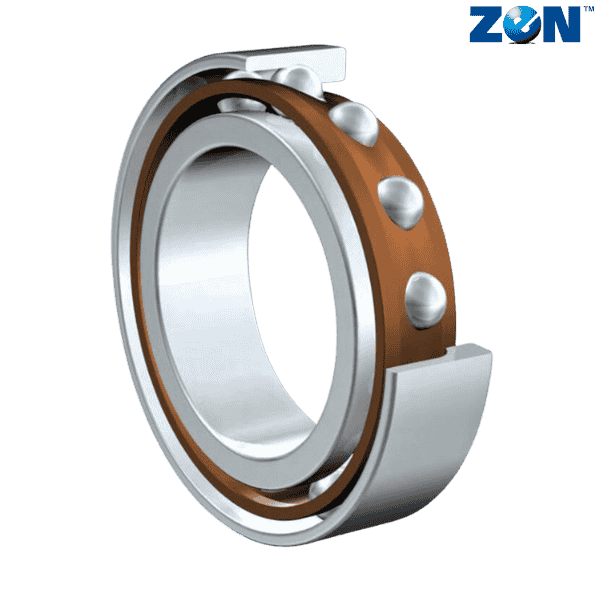

** Images are for representation purposes only
