Description
Brand - ZEN
Item Number - S7306-B ZEN

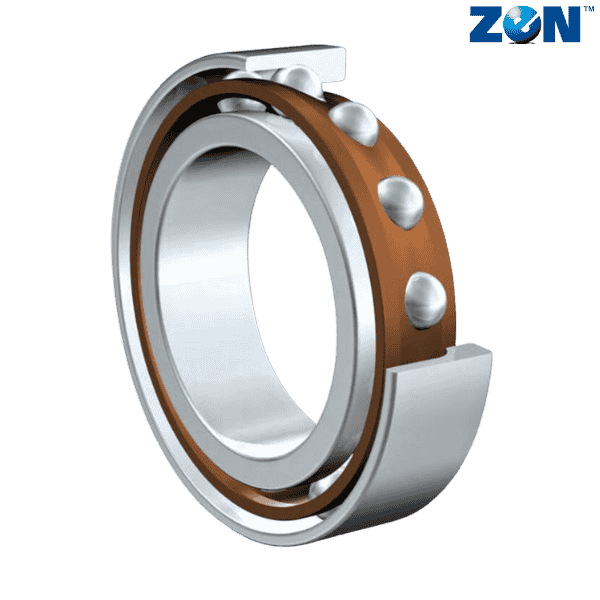

Category - Single Row Angular Contact Ball Bearing
Inner Ring Dimension (d) mm - 30
Outer Ring Dimension (D) mm - 72
Width (B) mm - 19
Dynamic Load Rating (N) - 23590
Static Load Rating (N) - 13580
Limiting Speed (Grease) - 8.5
Limiting Speed (Oil) - 11.5
Weight (kg) - 0.33
Radial Play - 0.008-0.027
Outer Ring Material - AISI 420/440
Inner Ring Material - AISI 420/440
Ball Material - AISI 420/440
** Images are for representation purposes only
