Description
Brand - ZEN
Item Number - S7305-B ZEN
Category - Single Row Angular Contact Ball Bearing
Inner Ring Dimension (d) mm - 25
Outer Ring Dimension (D) mm - 62
Width (B) mm - 17
Dynamic Load Rating (N) - 17500
Static Load Rating (N) - 9380
Limiting Speed (Grease) - 9.9
Limiting Speed (Oil) - 13.3
Weight (kg) - 0.22
Radial Play - 0.008-0.027
Outer Ring Material - AISI 420/440
Inner Ring Material - AISI 420/440
Ball Material - AISI 420/440

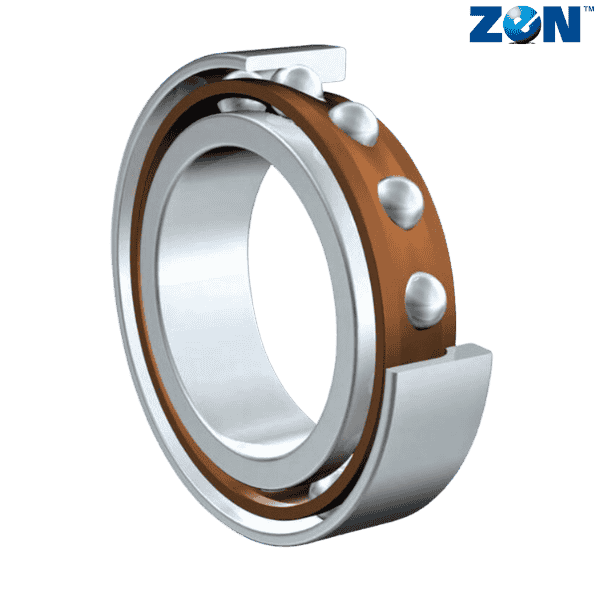

** Images are for representation purposes only
