Description
Brand - ZEN
Item Number - S7302-B ZEN
Category - Single Row Angular Contact Ball Bearing
Inner Ring Dimension (d) mm - 15
Outer Ring Dimension (D) mm - 42
Width (B) mm - 13
Dynamic Load Rating (N) - 9170
Static Load Rating (N) - 4270
Limiting Speed (Grease) - 14.2
Limiting Speed (Oil) - 19
Weight (kg) - 0.08
Radial Play - 0.006-0.023
Outer Ring Material - AISI 420/440
Inner Ring Material - AISI 420/440
Ball Material - AISI 420/440

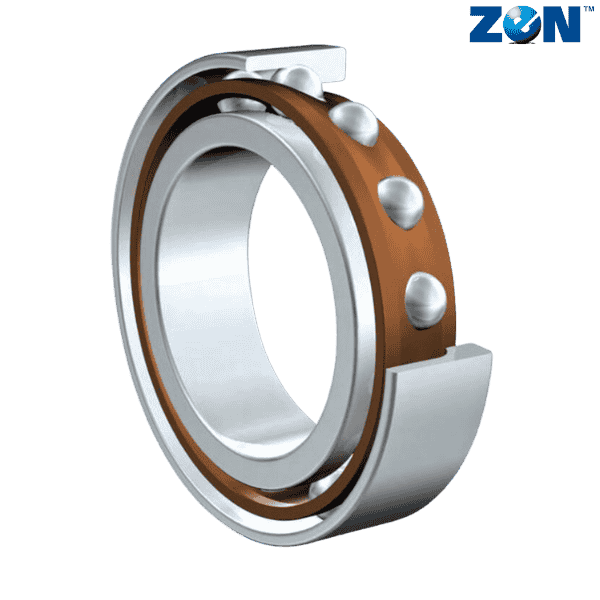

** Images are for representation purposes only
