Description
Brand - SKF

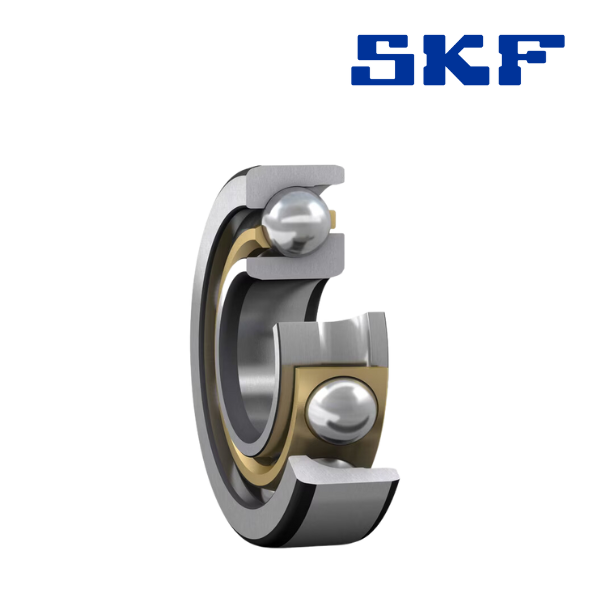

Item Number - S7009CEGA/P4A SKF
Also known as - 2MMV9109HX VV SUL 45BNC10TRV1VLP3 HSS7009C.T.P4S.UL VEX45/S 7CE1 UL ZSB109HCRRUL
Inner (d) MM - 45
Outer (D) MM - 75
Width (B) MM - 16
Inner (d) Inch - 1.7717
Outer (D) Inch - 2.9528
Width (B) Inch - 0.6299
Weight (kg) - 0.25
Seal - 2RL - Low Friction NBR-seal
Cage Type - TB - Hard Fiber Cage
Precision - P4 Precision (Higher than P5)
Contact Angle - 15° Contact High Speed Design
Pairing - G - Universal Pairing
Axial Internal Clearance / Preload - GA - Light Preload
Lubrication - Standard Lubrication
