Description
Brand - ZEN
Item Number - S686-2TS4.5 ZEN
Category - Ball Bearing (Miniature Metric Series)
Bearing Type - Standard
Type - PTFE seals with Stainless Steel

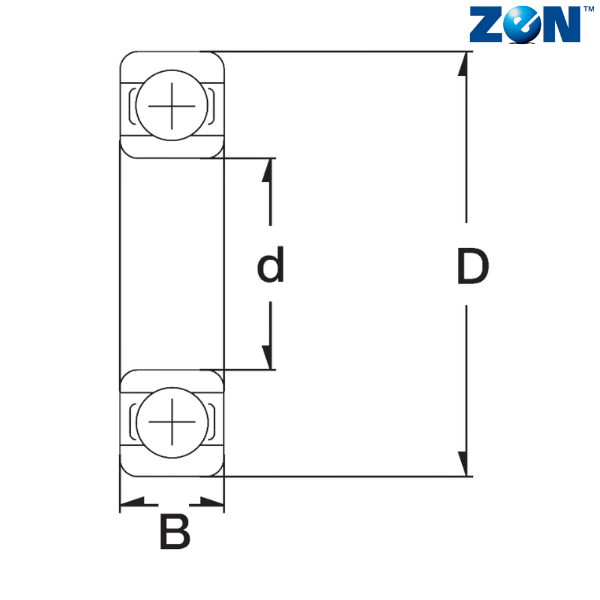

Inner Diameter (d) mm - 6.0
Outer Diameter (D) mm - 13.0
Width (mm) - 4.5
Dynamic Load Rating (C) N (only 100 Cr6) - 1082
Static Load Rating (C) N (only 100 Cr6) - 442
Limiting Speed x1000rpm (Grease) - 40.0
Limiting Speed x1000rpm (Oil) - 50.0
Standard Cage Type - Crown Cage, Ribbon Cage
Approximate Weight - Less than 4 Grams
Compatible Ball Bearing (Chrome Steel with Metal Shields) - 686-2ZW4.5
Compatible Ball Bearing (Stainless Steel with Metal Shields) - S686-2ZW4.5
Compatible Ball Bearing (Chrome Steel with PTFE seals) - 686-2TS4.5
Notes :
2TS - PTFE Seals

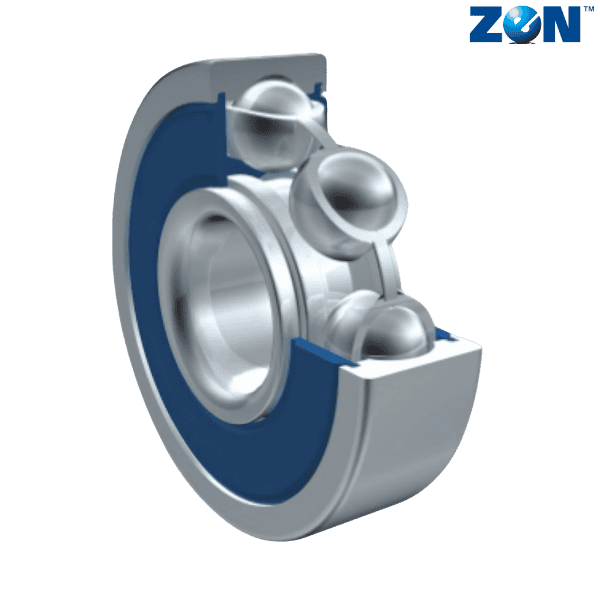

** Images are for representation purposes only
