Description
Brand - ZEN
Item Number - S683-2TS ZEN
Category - Ball Bearing (Miniature Metric Series)
Bearing Type - Standard
Type - PTFE seals with Stainless Steel

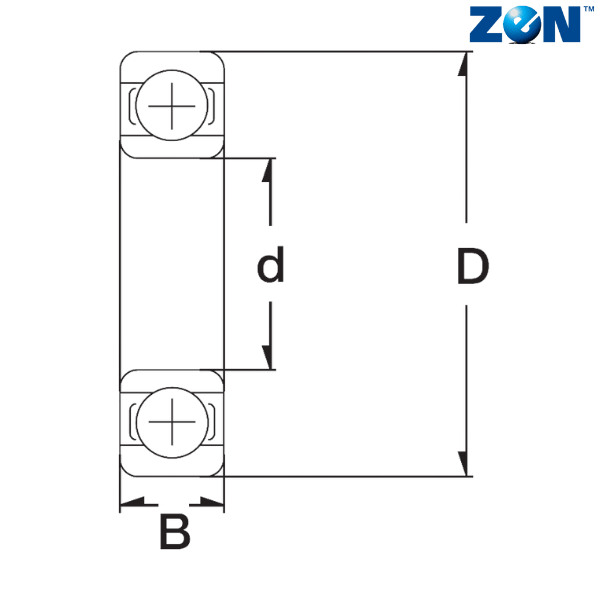

Inner Diameter (d) mm - 3.0
Outer Diameter (D) mm - 7.0
Width (mm) - 3.0
Dynamic Load Rating (C) N (only 100 Cr6) - 311
Static Load Rating (C) N (only 100 Cr6) - 112
Limiting Speed x1000rpm (Grease) - 63.0
Limiting Speed x1000rpm (Oil) - 75.0
Standard Cage Type - Crown Cage, Ribbon Cage
Approximate Weight - Less than 1 Gram
Compatible Ball Bearing (Chrome Steel with Metal Shields) - 683-2Z
Compatible Ball Bearing (Stainless Steel with Metal Shields) - S683-2Z
Compatible Ball Bearing (Chrome Steel with PTFE seals) - 683-2TS
Notes :
2TS - PTFE Seals

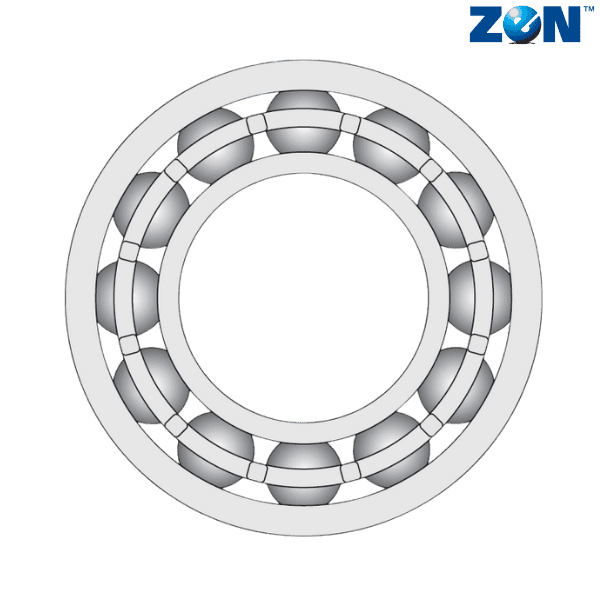

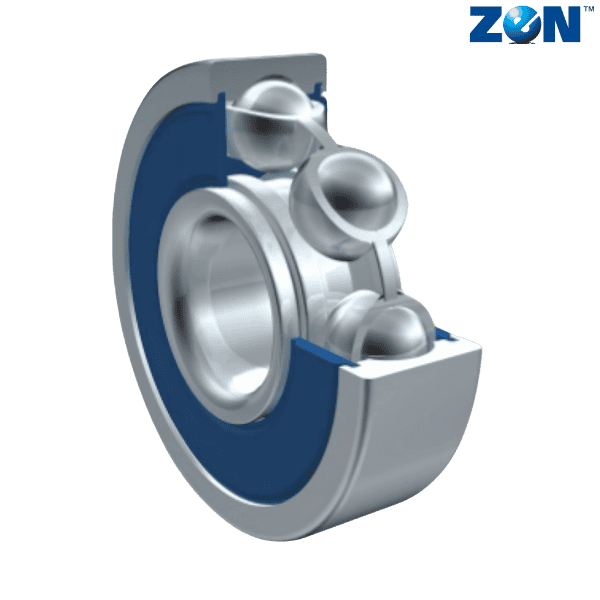

** Images are for representation purposes only
