Description
Brand - ZEN
Item Number - S6228 ZEN
Category - Stainless Steel Deep Groove Ball Bearing (Metric Series)

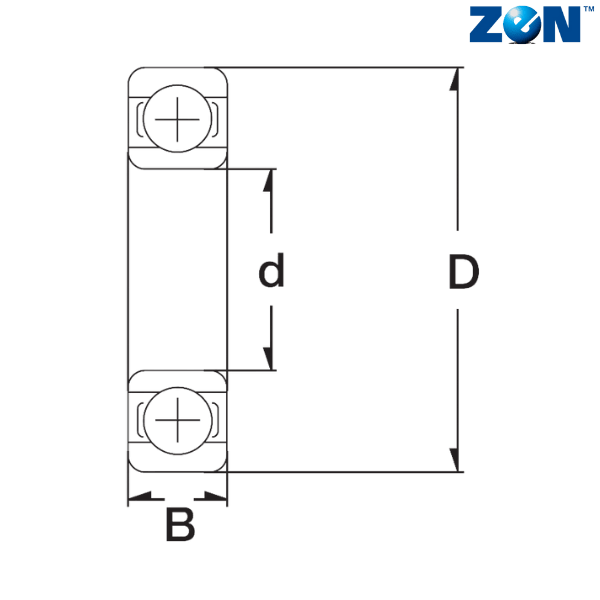

Inner Ring Dimension (d) mm - 140
Outer Ring Dimension (D) mm - 250
Width (B) mm - 42
Dynamic Load Rating (N) - 116200
Static Load Rating (N) - 105000
Weight (kg) - 7.41
Radial Play - 0.018 - 0.048
Outer Ring Material - AISI 420/440
Inner Ring Material - AISI 420/440
Ball Material - AISI 420/440
Notes :
S - Stainless Steel
** Images are for representation purposes only
