Description
Brand - ZEN
Item Number - S6224-2RS-C3 ZEN
Category - Stainless Steel Deep Groove Ball Bearing (Metric Series)

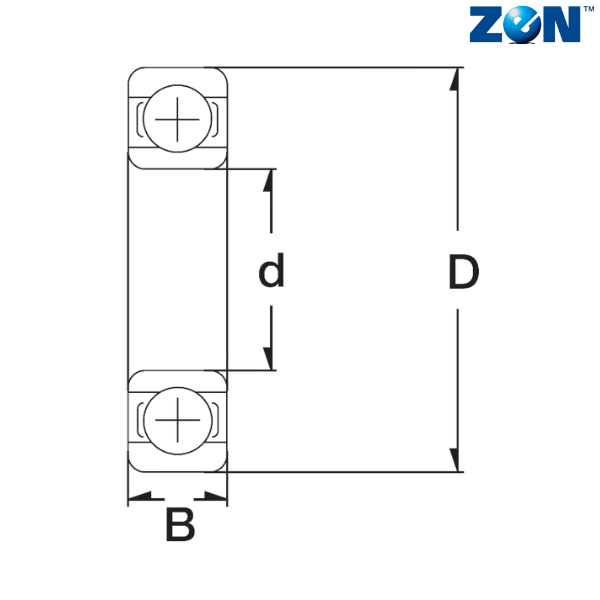

Inner Ring Dimension (d) mm - 120
Outer Ring Dimension (D) mm - 215
Width (B) mm - 40
Dynamic Load Rating (N) - 109200
Static Load Rating (N) - 91700
Weight (kg) - 5.5
Radial Play - 0.036 - 0.066
Outer Ring Material - AISI 420/440
Inner Ring Material - AISI 420/440
Ball Material - AISI 420/440
Notes :
S - Stainless Steel
2RS - Rubber Seals

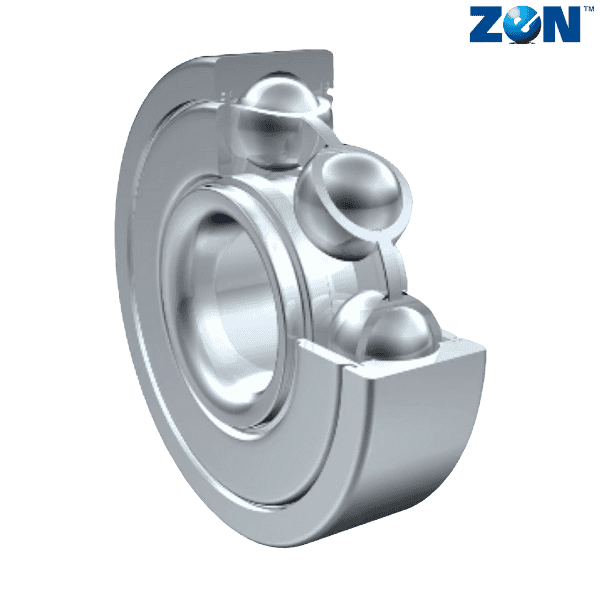

** Images are for representation purposes only
