Description
Brand - ZEN
Item Number - S6220 ZEN
Category - Stainless Steel Deep Groove Ball Bearing (Metric Series)

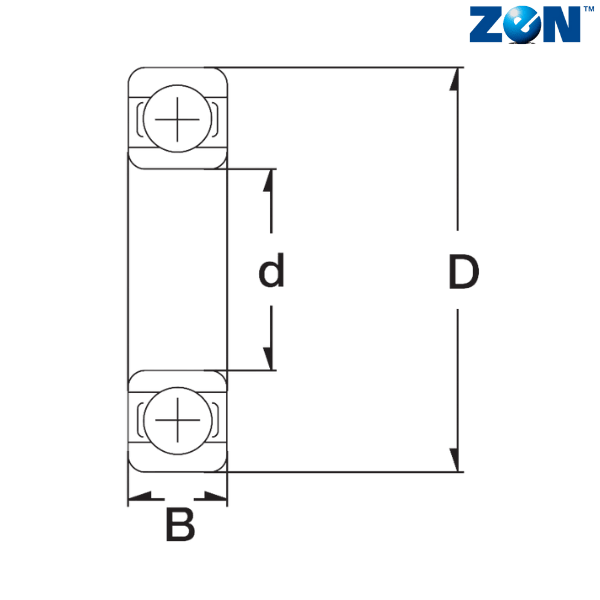

Inner Ring Dimension (d) mm - 100
Outer Ring Dimension (D) mm - 180
Width (B) mm - 34
Dynamic Load Rating (N) - 85400
Static Load Rating (N) - 65100
Weight (kg) - 3.2
Radial Play - 0.012 - 0.036
Outer Ring Material - AISI 420/440
Inner Ring Material - AISI 420/440
Ball Material - AISI 420/440
Notes :
S - Stainless Steel
** Images are for representation purposes only
