Description
Brand - ZEN
Item Number - S6016-C3 ZEN
Category - Stainless Steel Deep Groove Ball Bearing (Metric Series)

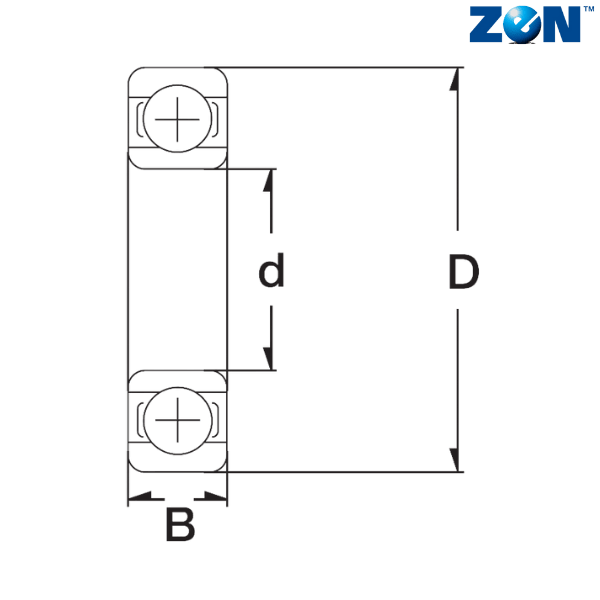

Inner Ring Dimension (d) mm - 80
Outer Ring Dimension (D) mm - 125
Width (B) mm - 22
Dynamic Load Rating (N) - 33250
Static Load Rating (N) - 28000
Weight (kg) - 0.86
Radial Play - 0.025 - 0.051
Outer Ring Material - AISI 420/440
Inner Ring Material - AISI 420/440
Ball Material - AISI 420/440
Notes :
S - Stainless Steel
** Images are for representation purposes only
