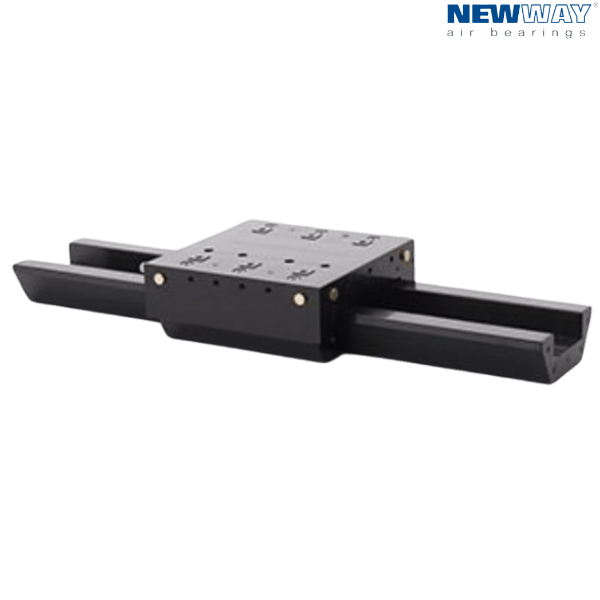

S41-06150-095254 NEW WAY

NEW WAY

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - NEW WAY
Item Number - S41-06150-095254 NEW WAY
Category - Dovetail Air Slides

Imperial :
Input Pressure (psi) - 60
Flow (SCFH) - 10 - 15
Stage Area (inch) - 6 x 6
Stage Travel (inch) - 4
Stage Length (inch) - 6
Guidebar Length (inch) - 10
Stage Width (inch) - 6
Guidebar Width (inch) - 3.74
Stage Height (inch) - 2.5
Travel Length (inch) - 4
Guidebar Height (inch) - 1.5
Stage Weight (lbs) - 4.8
Guidebar Weight (lbs) - 3
Total Weight (lbs) - 7.8

Metric :
Input Pressure (MPa) - 0.41
Flow (NLPM) - 4.32 - 6.49
Stage Area (mm) - 152 x 152
Stage Travel (mm) - 102
Stage Length (mm) - 152
Guidebar Length (mm) - 254
Stage Width (mm) - 152
Guidebar Width (mm) - 95
Stage Height (mm) - 64
Travel Length (mm) - 102
Guidebar Height (mm) - 38
Stage Weight (kg) - 2.177
Guidebar Weight (kg) - 1.361
Total Weight (kg) - 3.538

Notes :
Proprietary Item :
------------------------------
The drawing is proprietary to New Way Machine Components, Inc. Unauthorized use, reproduction, or disclosure is prohibited without written consent. All rights reserved.

** Images are for representation purposes only
