S3BCH-900-HD FAG

Brand - FAG
Item Number - S3BCH-900-HD FAG

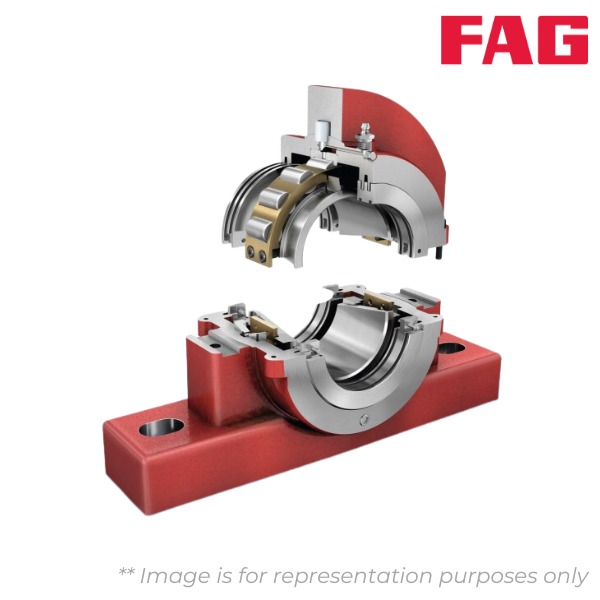

Category - Split Cylindrical Roller Bearing Housing
Complete Unit Float - S3BCH-900-FL
Complete Unit Held - S3BCH-900-HD
Shaft Diameter (d) inch - 9
Weight of Complete Unit (m) kg - 752.282332
Housing Designation - PH-314
Length base (B) inch - 37.5
Housing Height (H) inch - 28.75
Center Height (A) inch - 13.75

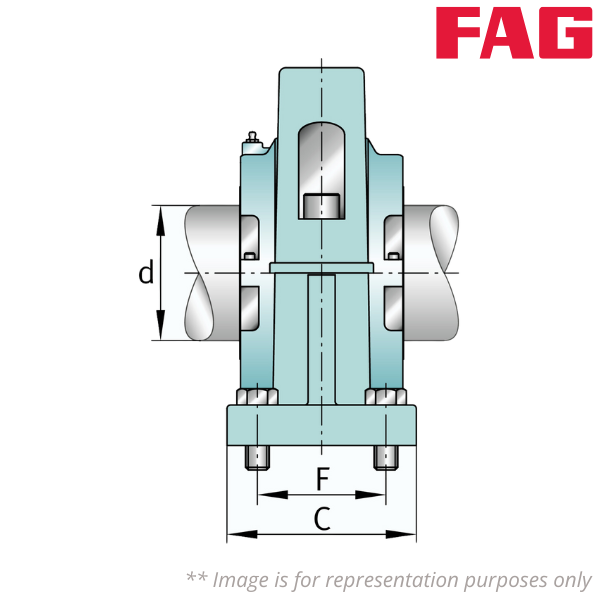

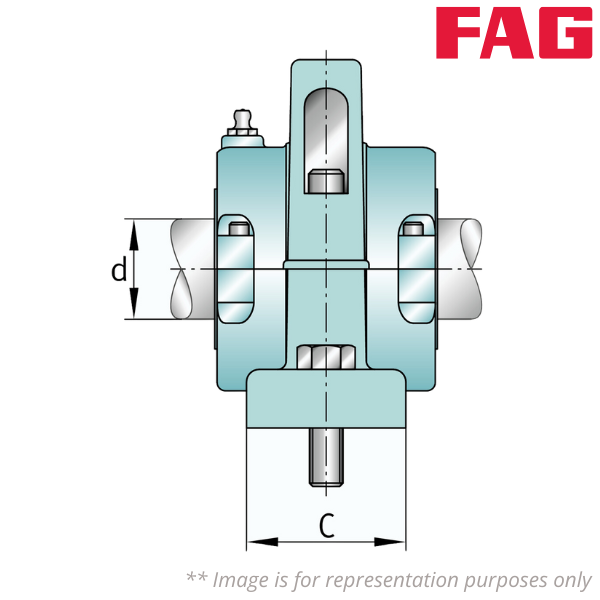

Base Width (C) inch - 11
Base Height (D) inch - 3
Minimum Base Hole Distance 1 (E min) inch - 28.25
Maximum Base Hole Distance 1 (E max) inch - 29.75
Base Hole Distance 2 (F) inch - 7
Number of Mounting Bolts (S) - 4
Mounting Bolt Diameter (S) inch - 1.75
Cartridge Assembly Float Bearing - S3BC-900-FL
Cartridge Assembly Held Bearing - S3BC-900-HD
Cartridge - S3C-900
Bearing Float - S3B-900-FL
Bearing Held - S3B-900-HD
Housing Group - 900 Grp

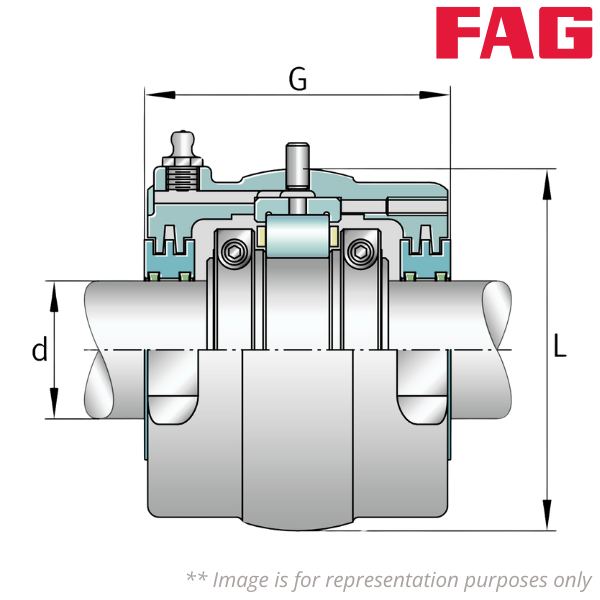

Length Through Bore (G) inch - 13.1875
Outside Diameter Cartridge (L) inch - 21.5
Grease Capacity (lbs) - 15.2
Cartridge Weight (kg) - 326.0419296
Basic Dynamic Radial Load Rating (Cr) lbs - 367400
Basic Static Radial Load Rating (C0r) lbs - 586233
Basic Dynamic Axial Load Rating (Ca) lbs - 18652
Maximum Limiting Speed (rpm) - 972

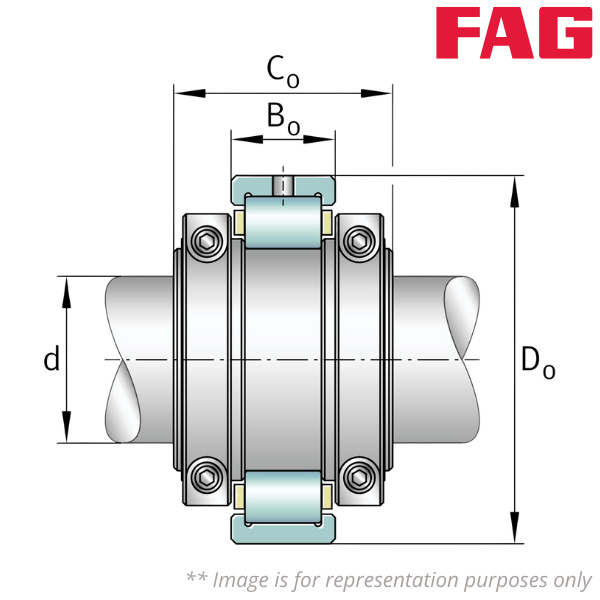

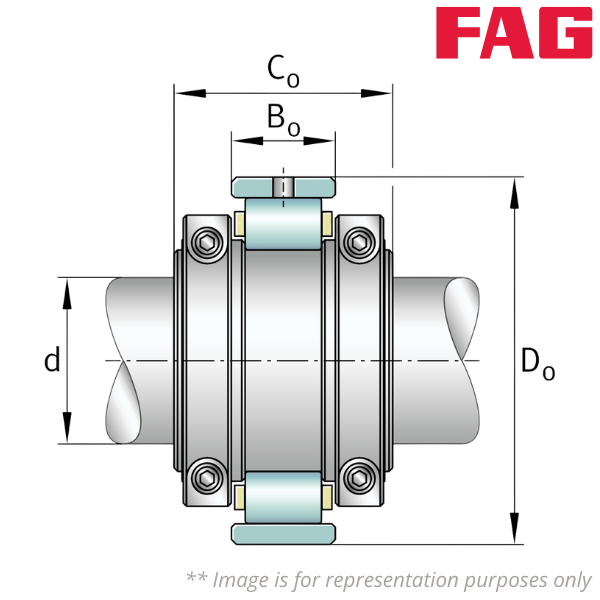

Outside Diameter Bearing (Do) inch - 18.5
Width Inner Ring (Co) inch - 8.346
Width Outer Ring (Bo) inch - 5.185
Bearing Weight (kg) - 155.0831048
