S3BCH-800-HD FAG

Brand - FAG
Item Number - S3BCH-800-HD FAG

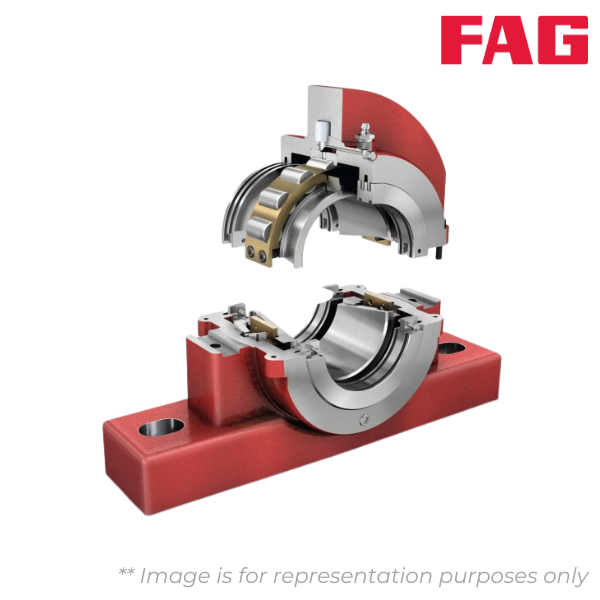

Category - Split Cylindrical Roller Bearing Housing
Complete Unit Float - S3BCH-800-FL
Complete Unit Held - S3BCH-800-HD
Shaft Diameter (d) inch - 8
Weight of Complete Unit (m) kg - 539.1848104
Housing Designation - PH-313
Length base (B) inch - 33
Housing Height (H) inch - 25.75
Center Height (A) inch - 12.25

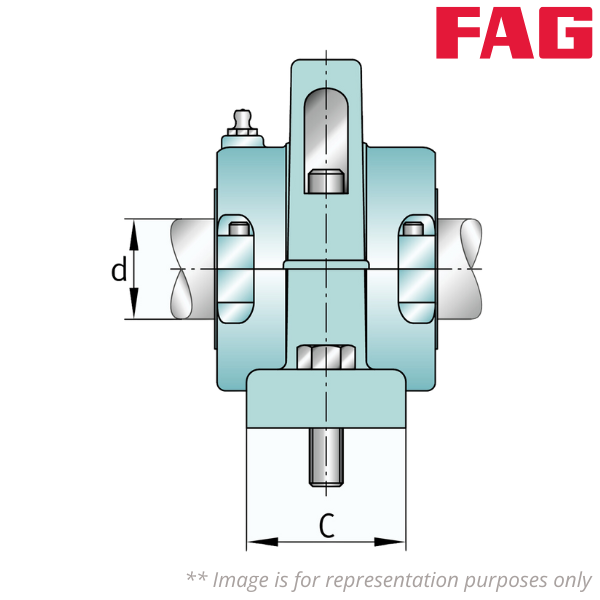

Base Width (C) inch - 10.5
Base Height (D) inch - 2.625
Minimum Base Hole Distance 1 (E min) inch - 24.25
Maximum Base Hole Distance 1 (E max) inch - 25.75

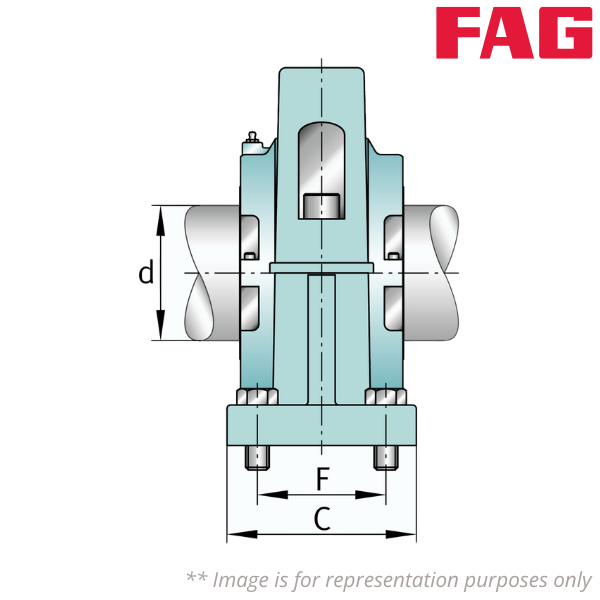

Base Hole Distance 2 (F) inch - 6.75
Number of Mounting Bolts (S) - 4
Mounting Bolt Diameter (S) inch - 1.5
Cartridge Assembly Float Bearing - S3BC-800-FL
Cartridge Assembly Held Bearing - S3BC-800-HD
Cartridge - S3C-800
Bearing Float - S3B-800-FL
Bearing Held - S3B-800-HD
Housing Group - 800 Grp

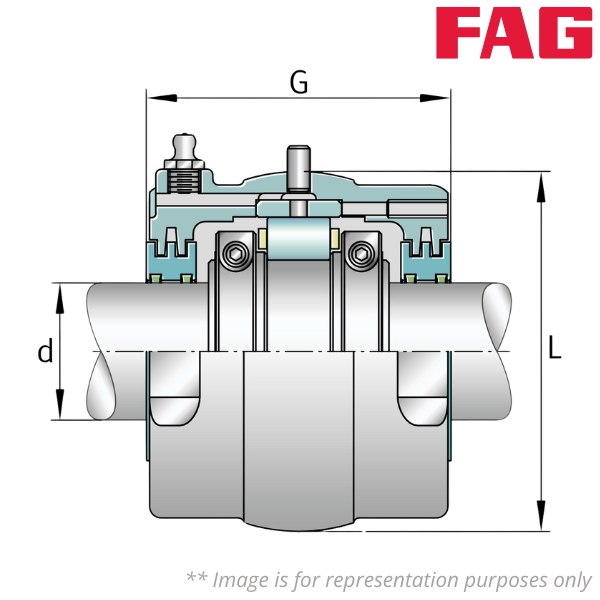

Length Through Bore (G) inch - 11.8125
Outside Diameter Cartridge (L) inch - 19.25
Grease Capacity (lbs) - 12.3
Cartridge Weight (kg) - 233.1009288
Basic Dynamic Radial Load Rating (Cr) lbs - 296243
Basic Static Radial Load Rating (C0r) lbs - 461718
Basic Dynamic Axial Load Rating (Ca) lbs - 16948
Maximum Limiting Speed (rpm) - 1105

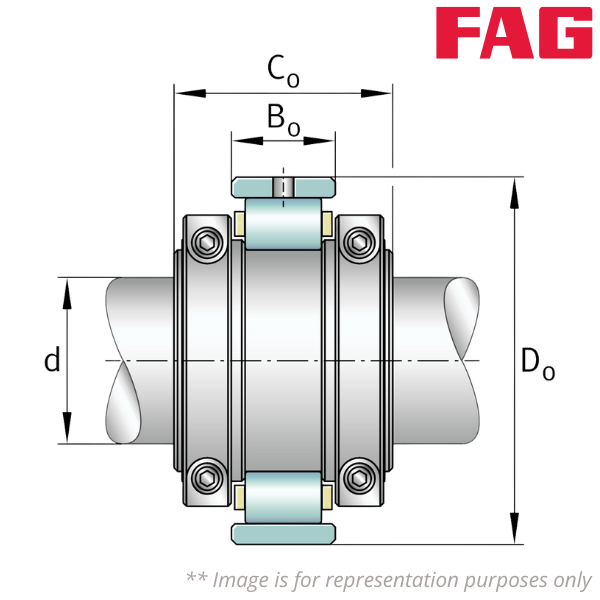

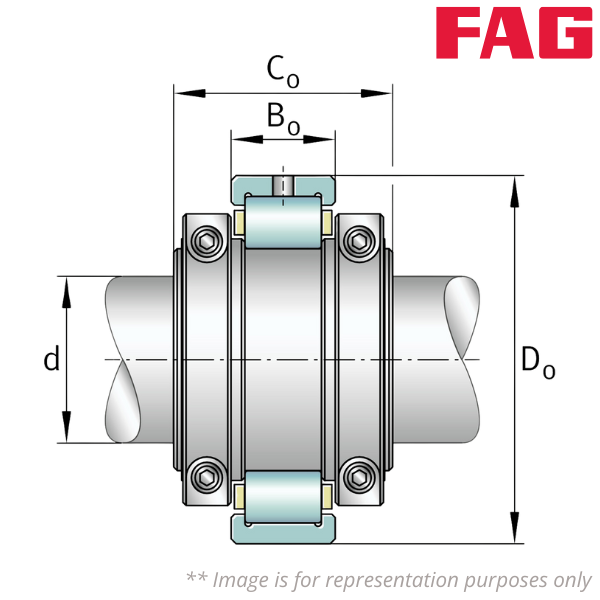

Outside Diameter Bearing (Do) inch - 16.5
Width Inner Ring (Co) inch - 7.52
Width Outer Ring (Bo) inch - 4.656
Bearing Weight (kg) - 110.6310888
