S3BCH-700-HD FAG

Brand - FAG
Item Number - S3BCH-700-HD FAG

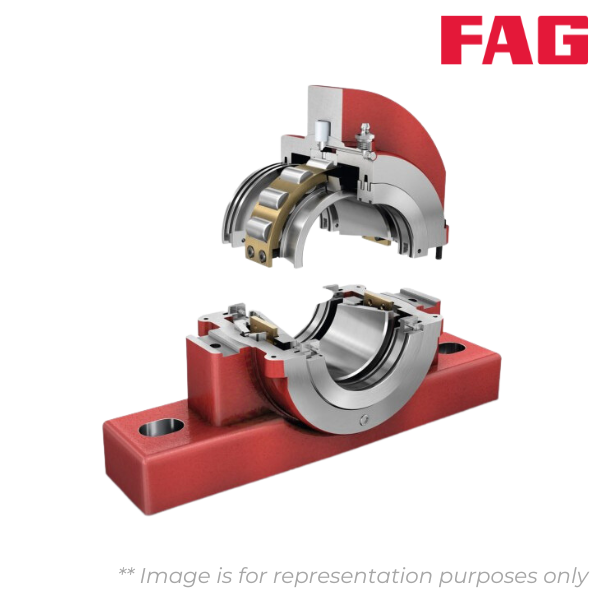

Category - Split Cylindrical Roller Bearing Housing
Complete Unit Float - S3BCH-700-FL
Complete Unit Held - S3BCH-700-HD
Shaft Diameter (d) inch - 7
Weight of Complete Unit (m) kg - 403.2886472
Housing Designation - PH-312
Length base (B) inch - 30
Housing Height (H) inch - 22.875
Center Height (A) inch - 11

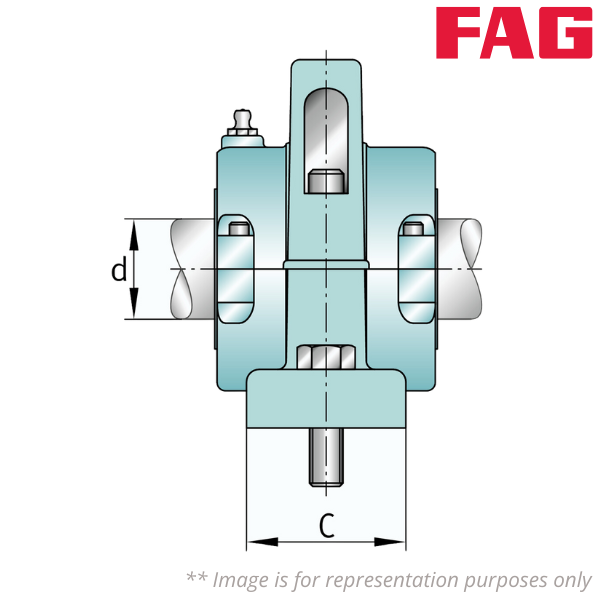

Base Width (C) inch - 10
Base Height (D) inch - 2.5
Minimum Base Hole Distance 1 (E min) inch - 24.25
Maximum Base Hole Distance 1 (E max) inch - 25.75

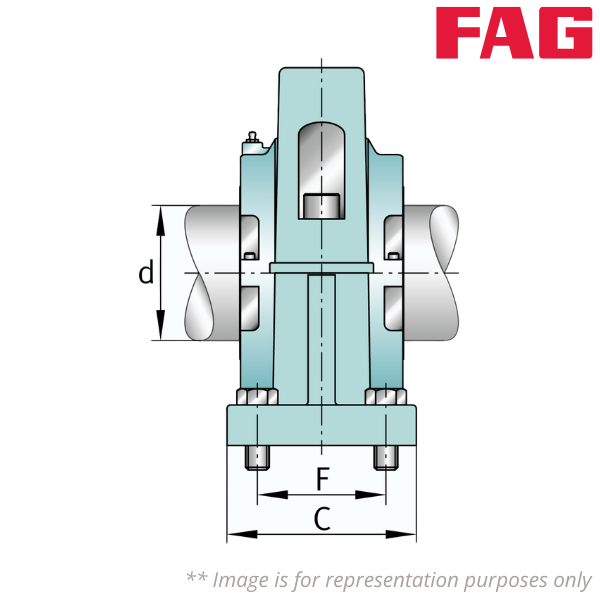

Base Hole Distance 2 (F) inch - 6
Number of Mounting Bolts (S) - 4
Mounting Bolt Diameter (S) inch - 1.25
Cartridge Assembly Float Bearing - S3BC-700-FL
Cartridge Assembly Held Bearing - S3BC-700-HD
Cartridge - S3C-700
Bearing Float - S3B-700-FL
Bearing Held - S3B-700-HD
Housing Group - 700 Grp

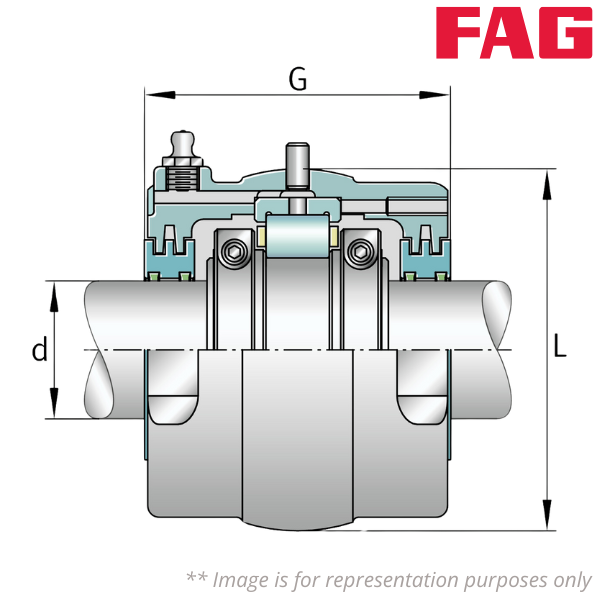

Length Through Bore (G) inch - 11.1875
Outside Diameter Cartridge (L) inch - 17
Grease Capacity (lbs) - 9.7
Cartridge Weight (kg) - 180.4842568
Basic Dynamic Radial Load Rating (Cr) lbs - 250948
Basic Static Radial Load Rating (C0r) lbs - 385223
Basic Dynamic Axial Load Rating (Ca) lbs - 15614
Maximum Limiting Speed (rpm) - 1227

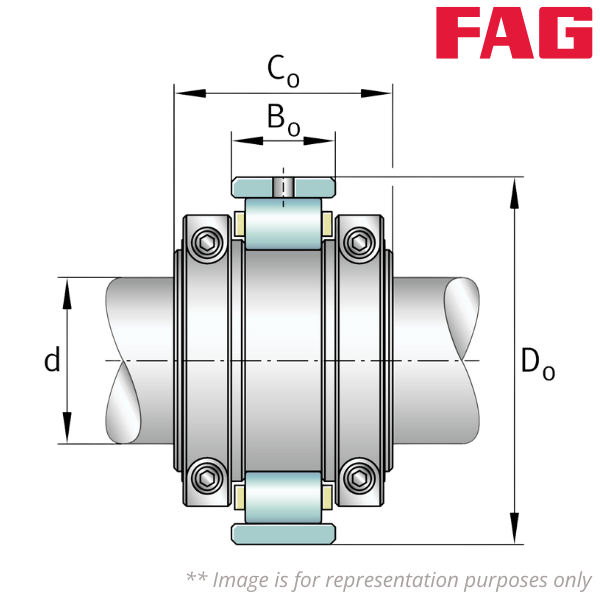

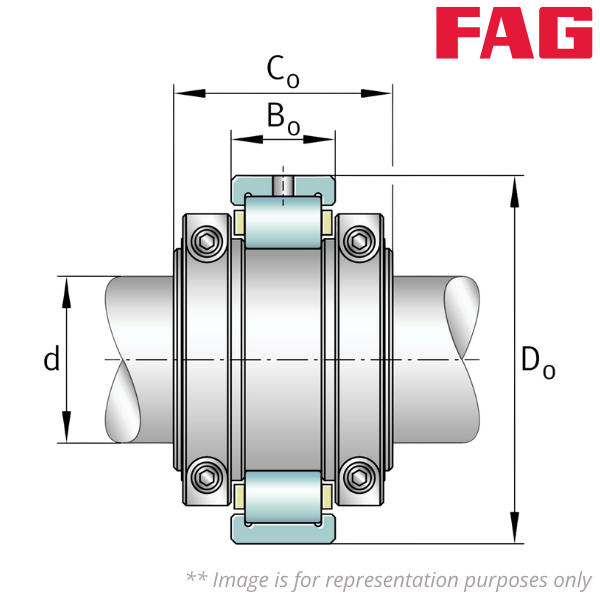

Outside Diameter Bearing (Do) inch - 14.75
Width Inner Ring (Co) inch - 7.008
Width Outer Ring (Bo) inch - 4.28
Bearing Weight (kg) - 83.4155688
