S3BCH-1100-HD FAG


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - FAG
Item Number - S3BCH-1100-HD FAG
Category - Plummer Housing Unit, Split Cylindrical Roller Bearing Housing
Shaft Diameter (d) inch - 11
Weight (m) kg - 628.4970752
Complete Unit Float - S3BCH-1100-FL
Complete Unit Held - S3BCH-1100-HD
Housing Designation - PH-316
Length Base (B) inch - 37
Housing Height (H) inch - 30.75
Center Height (A) inch - 14.5

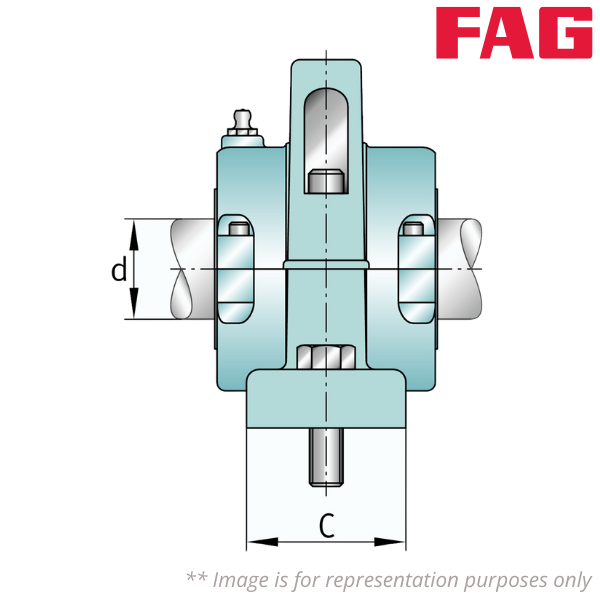

Base Width (C) inch - 11
Base height (D) inch - 2.75
Minimum Base hole distance 1 (E min) inch - 19
Maximum Base hole distance 1 (E max) inch - 20.5
Minimum Base hole distance 3 (E1 min) inch - 28.5
Maximum Base hole distance 3 (E1 max) inch - 30

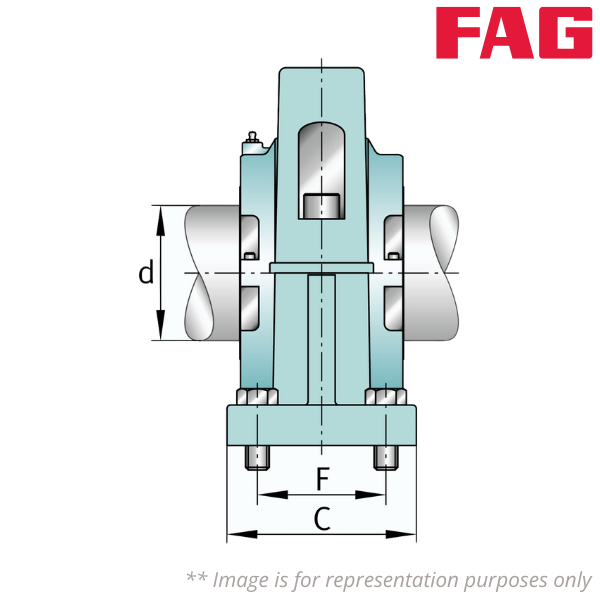

Base Hole Distance 2 (F) inch - 7
Number of Mounting bolts (S) - 8
Mounting Bolt Diameter (S) inch - 1.5
Cartridge Float Bearing - S3BC-1100-FL
Cartridge Held Bearing - S3BC-1100-HD
Cartridge - S3C-1100
Cartridge Weight (kg) - 420.3437064
Bearing Float - S3B-1100-FL
Bearing Held - S3B-1100-HD
Bearing Group - 1100 Grp
Bearing Weight (kg) - 194.0920168

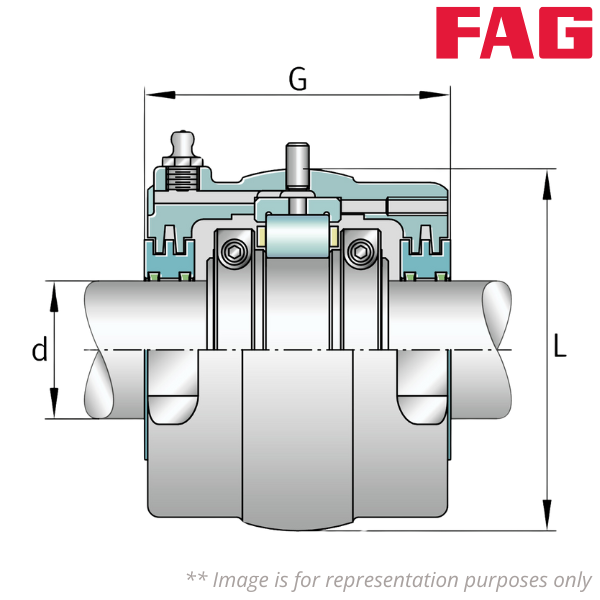

Length Through Bore (G) inch - 14.0625
Outside Diameter Cartridge (L) inch - 22.5
Grease Capacity (lbs) - 22.29
Basic Radial Dynamic Load Rating (Cr) lbs - 434538
Basic Radial Static Load Rating (C0r) lbs - 751313
Basic Axial Dynamic Load Rating (Ca) lbs - 19369
Maximum Limiting Speed (rpm) - 870

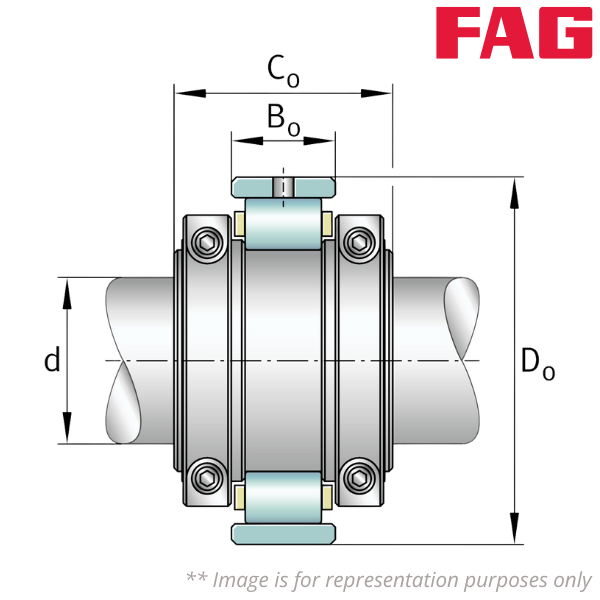

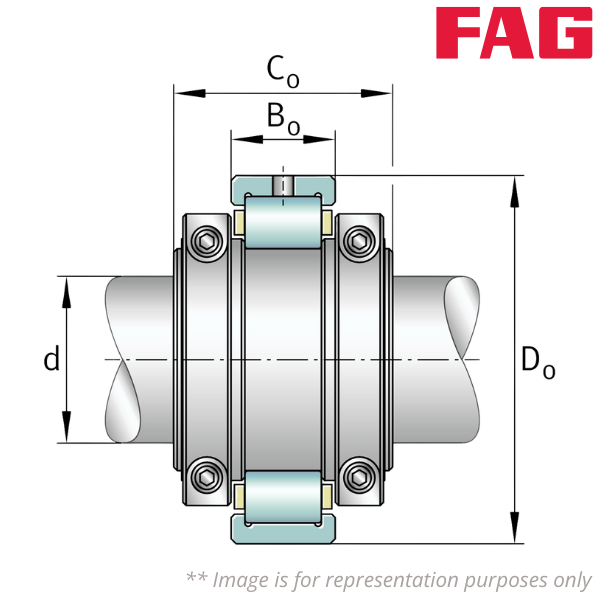

Outside Diameter Bearing (Do) inch - 19.5
Width Inner Ring (Co) inch - 9.606
Width Outer Ring (Bo) inch - 5.5
