Description
Brand - FAG
Item Number - S3BC-1000-HD FAG

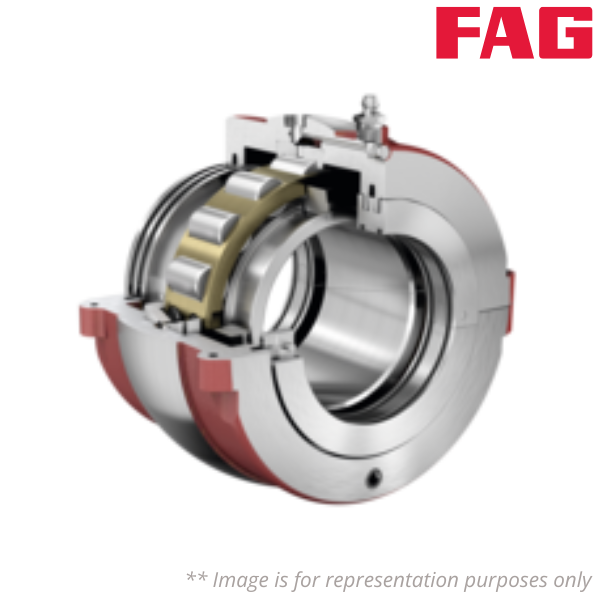

Category - Split Cylindrical Roller Bearing Housing
Shaft Diameter (d) inch - 10
Cartridge Assembly Float Bearing - S3BC-1000-FL
Cartridge Assembly Held Bearing - S3BC-1000-HD
Length Through Bore (G) inch - 13.1875
Outside Diameter Cartridge (L) inch - 22
Grease Capacity (lbs) - 18.39
Cartridge - S3C-1000
Weight (kg) - 338.7425056
Bearing Float - S3B-1000-FL
Bearing Held - S3B-1000-HD
Bearing Weight (kg) - 157.3510648
Basic Dynamic Radial Load Rating (Cr) lbs - 366755
Basic Static Radial Load Rating (C0r) lbs - 592566
Basic Dynamic Axial Load Rating (Ca) lbs - 17823
Maximum Limiting Speed (rpm) - 920
Outside Diameter Bearing (Do) inch - 19
Width Inner Ring (Co) inch - 8.307
Width Outer Ring (Bo) inch - 4.906
Housing Group - 1000 Grp
