Description
Brand - FAG
Item Number - S3B-1500-HD FAG
Category - Plummer Housing Unit, Split Cylindrical Roller Bearing Housing
Bearing Float - S3B-1500-FL
Bearing Held - S3B-1500-HD
Bearing Group - 1500 Grp
Bearing Weight (kg) - 435.3122424
Basic Radial Dynamic Load Rating (Cr) lbs - 632874
Basic Radial Static Load Rating (C0r) lbs - 1138102
Basic Axial Dynamic Load Rating (Ca) lbs - 22850
Maximum Limiting Speed (rpm) - 636

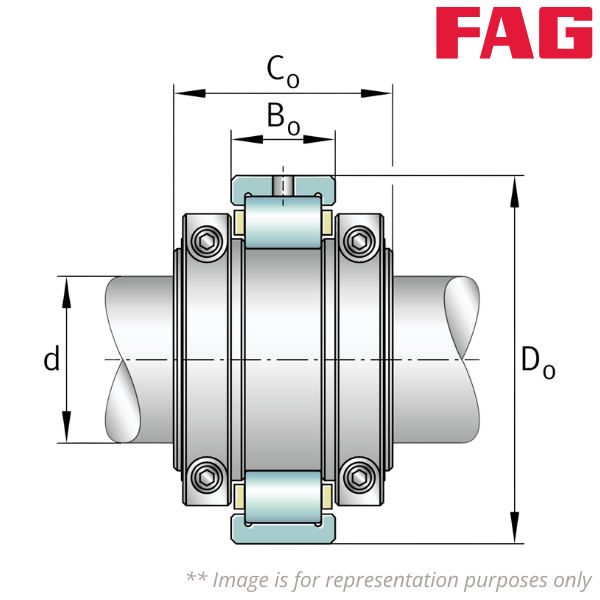

Outside Diameter Bearing (Do) inch - 27
Width Inner Ring (Co) inch - 11.496
Width Outer Ring (Bo) inch - 6.563
